INTEL CORPORATION

AG430HX

Processor

Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

ATI

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

2MB

Cache

256KB

BIOS

Intel

Dimensions

304mm x 243mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VESA feature connector, VGA port, IR connector, USB connectors (2), soft off power supply, wavetable connectors (2), telephony connector, audio out connector, microphone in connector, audio in connector, MIDI/game port, CD-ROM connector

NPU Options

None

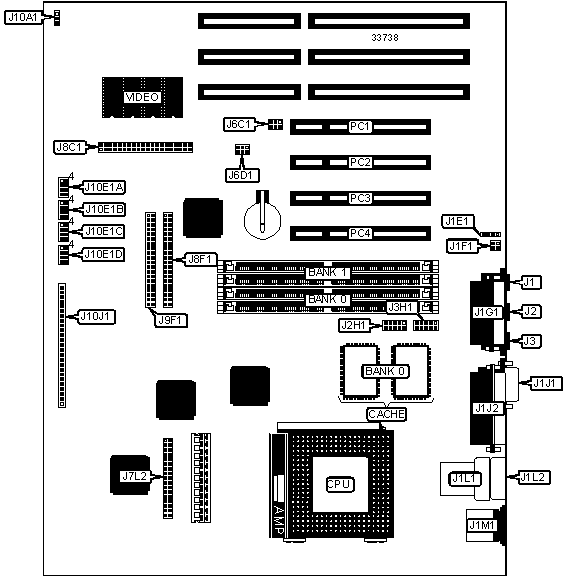

CONNECTIONS

Purpose

Location

Purpose

Location

Microphone in connector

J1

Wavetable connector

J6D1

Audio in connector

J2

Floppy drive interface

J7L2

Audio out connector

J3

VESA feature connector

J8C1

CD-ROM connector

J1E1

IDE interface 2

J8F1

Telephony connector

J1F1

IDE interface 1

J9F1

MIDI/game port

J1G1

Chassis fan power

J10A1

VGA port

J1J1

Front panel power switch

J10J1 pins 1 & 2

Parallel port

J1J2

Green PC connector

J10J1 pins 3 & 4

USB connector

J1L1

IR connector

J10J1 pins 6 - 11

USB connector

J1L2

IDE interface LED

J10J1 pins 13 - 16

PS/2 mouse port

J1M1

Green PC LED

J10J1 pins 18 - 21

Serial port 1

J2H1

Reset switch

J10J1 pins 22 & 23

Serial port 2

J3H1

Speaker

J10J1 pins 24 - 27

Wavetable connector

J6C1

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Password enabled

J10E1A

Pins 1 & 2 closed



Password disabled

J10E1A

Pins 2 & 3 closed

»

CMOS memory normal operation

J10E1A

Pins 4 & 5 closed



CMOS memory clear

J10E1A

Pins 5 & 6 closed

»

Setup access enabled

J10E1B

Pins 1 & 2 closed



Setup access disabled

J10E1B

Pins 2 & 3 closed

»

Flash BIOS normal operation

J10E1B

Pins 4 & 5 closed



Flash BIOS recovery mode

J10E1B

Pins 5 & 6 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 32

None

16MB

(2) 2M x 32

None

16MB

(2) 1M x 32

(2) 1M x 32

24MB

(2) 2M x 32

(2) 1M x 32

24MB

(2) 1M x 32

(2) 2M x 32

32MB

(2) 4M x 32

None

32MB

(2) 2M x 32

(2) 2M x 32

40MB

(2) 4M x 32

(2) 1M x 32

40MB

(2) 1M x 32

(2) 4M x 32

48MB

(2) 4M x 32

(2) 2M x 32

48MB

(2) 2M x 32

(2) 4M x 32

64MB

(2) 8M x 32

None

64MB

(2) 4M x 32

(2) 4M x 32

72MB

(2) 8M x 32

(2) 1M x 32

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

72MB

(2) 1M x 32

(2) 8M x 32

80MB

(2) 8M x 32

(2) 2M x 32

80MB

(2) 2M x 32

(2) 8M x 32

96MB

(2) 8M x 32

(2) 4M x 32

96MB

(2) 4M x 32

(2) 8M x 32

128MB

(2) 8M x 32

(2) 8M x 32

Note: Board accepts EDO memory. Board also accepts x 36 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION

Note: 256KB cache is factory installed and is not configurable.

VIDEO MEMORY CONFIGURATION

Note: 2MB video memory is factory installed and is not configurable.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J10E1C

J10E1D

75MHz

50MHz

1.5x

2 & 3, 5 & 6

1 & 2, 4 & 5

90MHz

60MHz

1.5x

2 & 3, 4 & 5

1 & 2, 4 & 5

100MHz

66MHz

1.5x

1 & 2, 5 & 6

1 & 2, 4 & 5

120MHz

60MHz

2x

2 & 3, 4 & 5

2 & 3, 4 & 5

133MHz

66MHz

2x

1 & 2, 5 & 6

2 & 3, 4 & 5

150MHz

60MHz

2.5x

2 & 3, 4 & 5

2 & 3, 5 & 6

166MHz

66MHz

2.5x

1 & 2, 5 & 6

2 & 3, 5 & 6

200MHz

66MHz

3x

1 & 2, 5 & 6

1 & 2, 5 & 6

Note: Pins designated should be in the closed position.
