Processor	TI486DX4/AM5X86
Processor Speed	100(internal)/133(internal)MHz
Chip Set	UMC
Video Chip Set	C & T
Maximum Onboard Memory	128MB
Maximum Video Memory	1MB
Cache	None
BIOS	AMI
Dimensions	179mm x 123mm
I/O Options	Floppy drive interface, IDE interface, parallel port, PS/2 mouse interface, serial ports (2), VGA feature connector, VGA port, flat panel connector, PC104 connectors (2), LCD connector
NPU Options	None

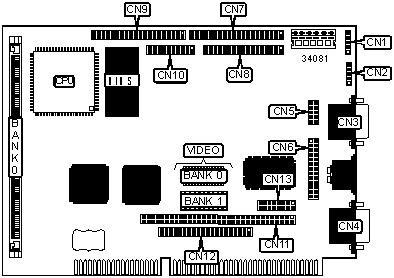

CONNECTIONS
Purpose	Location	Purpose	Location
Auxiliary keyboard connector	CN1	Floppy drive interface	CN8
PS/2 mouse interface	CN2	Flat panel connector	CN9
Serial port 1	CN3	VGA feature connector	CN10
VGA port	CN4	PC104 connector XT	CN11
Serial port 2	CN5	PC104 connector AT	CN12
Parallel port	CN6	LCD connector	CN13
IDE interface	CN7

DRAM CONFIGURATION
Size	Bank 0
4MB	(1) 1M x 36
8MB	(1) 2M x 36
16MB	(1) 4M x 36
32MB	(1) 8M x 36
64MB	(1) 16M x 36
128MB	(1) 32M x 36

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
512KB	512KB	None
1MB	512KB	512KB
Note: Bank 0 is factory installed and is not configurable. The size of the video memory chips is unidentifed.
