IBM CORPORATION

INTELLISTATION (TYPE 6899)

Processor

Pentium Pro

Processor Speed

200MHz

Chip Set

Unidentified

Video Chip Set

None

Maximum Onboard Memory

1GB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), riser slot, IR connector, VRM connector, USB connector, line in, line out, microphone in, wake on modem connectors (2), wake on LAN connector, CD-ROM audio in

NPU Options

None

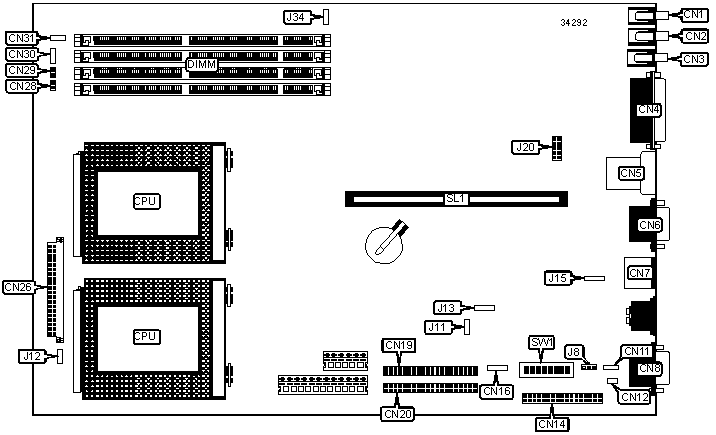

CONNECTIONS

Purpose

Location

Purpose

Location

Line out

CN1

IDE interface 2

CN20

Line in

CN2

VRM connector

CN26

Microphone in

CN3

Power LED

CN28

Parallel port

CN4

IDE interface LED

CN29

USB connector

CN5

Chassis fan power

CN30

Serial port 1

CN6

Speaker

CN31

PS/2 mouse port

CN7

Wake up on modem connector

J11

IR connector

CN8

Chassis fan power

J12

5v auxiliary connector

CN11

Wake up on modem connector

J13

Soft off power supply

CN12

Wake up on LAN connector

J15

Floppy drive interface

CN14

Serial port 2

J20

SCSI interface LED

CN16

CD-ROM audio in

J34

IDE interface 1

CN19

Riser slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

J8

Pins 1 & 2 closed



CMOS memory clear

J8

Pins 2 & 3 closed

»

Factory configured - do not alter

SW1/6

N/A

»

Serial port 2 enabled

SW1/7

On



Serial port 2 disabled

SW1/7

Off

»

Floppy drive write protect disabled

SW1/8

Off



Floppy drive write protect enabled

SW1/8

On

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(1) 1M x 64

None

None

None

16MB

(1) 2M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

24MB

(1) 2M x 64

(1) 1M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

None

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

32MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

40MB

(1) 4M x 64

(1) 1M x 64

None

None

48MB

(1) 4M x 64

(1) 2M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 8M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

72MB

(1) 8M x 64

(1) 1M x 64

None

None

80MB

(1) 8M x 64

(1) 2M x 64

None

None

DIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

96MB

(1) 8M x 64

(1) 4M x 64

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

None

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 32M x 64

None

None

None

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

None

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

None

1GB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION

CPU speed

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

200MHz

On

Off

On

On

Off
