LUCKY STAR TECHNOLOGY CO., LTD.
5GXM
|
 Device Type  |
 Mainboard  |
|
 Processor  |
 Cyrix GX  |
|
 Processor Speed  |
 233/266/300MHz  |
|
 Chip Set  |
 Cyrix  |
|
 Maximum Onboard Memory  |
 512MB (EDO & SDRAM supported)  |
|
 Audio Chip Set  |
 Cyrix  |
|
 Cache  |
 Unidentified  |
|
 BIOS  |
 Award  |
|
 Dimensions  |
 220mm x 210mm  |
|
 I/O Options  |
 32-bit PCI slots (2), floppy drive interface, game interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector, audio in – CD-ROM, wake on modem connector  |
|

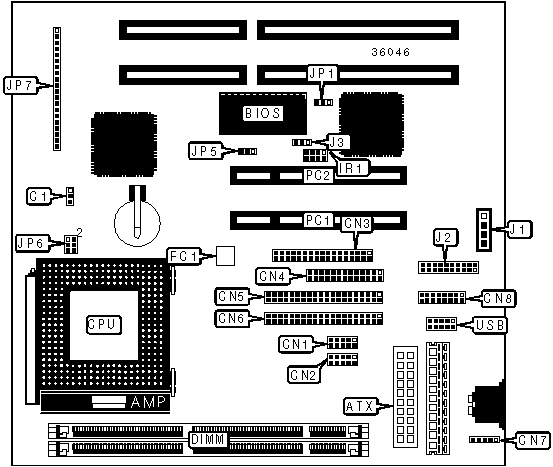

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 ATX power connector  |
 ATX  |
 Audio in – CD-ROM  |
 J1  |
|
 Chassis fan power  |
 C1  |
 Multimedia connector  |
 J2  |
|
 Serial port 2  |
 CN1  |
 Wake on LAN connector  |
 J3  |
|
 Serial port 1  |
 CN2  |
 Power LED & keylock  |
 JP7/pins 1 – 5  |
|
 Floppy drive interface  |
 CN3  |
 Speaker  |
 JP7/pins 7 – 10  |
|
 Parallel port  |
 CN4  |
 Reset switch  |
 JP7/pins 12 & 13  |
|
 IDE interface 1  |
 CN5  |
 IDE interface LED  |
 JP7/pins 15 & 16  |
|
 IDE interface 2  |
 CN6  |
 Turbo LED  |
 JP7/pins 18 & 19  |
|
 PS/2 mouse interface  |
 CN7  |
 Soft off power supply  |
 JP7/pins 21 & 22  |
|
 Game interface  |
 CN8  |
 32-bit PCI slots  |
 PC1 – PC2  |
|
 IR connector  |
 IR1  |
 USB connector  |
 USB  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Label  |
 Position  | |
|
 »  |
 Factory configured - do not alter  |
 FC1  |
 Unidentified  |
|
 Flash BIOS voltage select 12v  |
 JP1  |
 Pins 2 & 3 closed  | |
|
 Flash BIOS voltage select 5v  |
 JP1  |
 Pins 1 & 2 closed  | |
|
 »  |
 CMOS memory normal operation  |
 JP5  |
 Pins 1 & 2 closed  |
|
 CMOS memory clear  |
 JP5  |
 Pins 2 & 3 closed  | |
|
 DIMM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (1) 1M x 64  |
 None  |
|
 16MB  |
 (1) 2M x 64  |
 None  |
|
 16MB  |
 (1) 1M x 64  |
 (1) 1M x 64  |
|
 24MB  |
 (1) 2M x 64  |
 (1) 1M x 64  |
|
 32MB  |
 (1) 4M x 64  |
 None  |
|
 32MB  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 40MB  |
 (1) 4M x 64  |
 (1) 1M x 64  |
|
 48MB  |
 (1) 4M x 64  |
 (1) 2M x 64  |
|
 64MB  |
 (1) 8M x 64  |
 None  |
|
 64MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
|
 72MB  |
 (1) 8M x 64  |
 (1) 1M x 64  |
|
 80MB  |
 (1) 8M x 64  |
 (1) 2M x 64  |
|
 128MB  |
 (1) 16M x 64  |
 None  |
|
 128MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
|
 136MB  |
 (1) 16M x 64  |
 (1) 1M x 64  |
|
 144MB  |
 (1) 16M x 64  |
 (1) 2M x 64  |
|
 160MB  |
 (1) 16M x 64  |
 (1) 4M x 64  |
|
 192MB  |
 (1) 16M x 64  |
 (1) 8M x 64  |
|
 256MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
|
 Note: Board accepts SDRAM memory.  | ||
|
 CACHE CONFIGURATION  |
|
 Note: The location of the cache is unidentified.  |
|
 CPU SPEED SELECTION  | |||||
|
 CPU speed  |
 Clock speed  |
 Multiplier  |
 JP6/pins 1 & 2  |
 JP6/pins 3 & 4  |
 JP6/pins 5 & 6  |
|
 233MHz  |
 33MHz  |
 7x  |
 Closed  |
 Open  |
 Open  |
|
 266MHz  |
 33MHz  |
 8x  |
 Open  |
 Open  |
 Open  |
|
 300MHz  |
 33MHz  |
 9x  |
 Closed  |
 Open  |
 Closed  |
