MITSUBISHI ELECTRONICS

MP 3200

Processor

80386SX

Processor Speed

16MHz

Chip Set

Mitsubishi

Max. onboard DRAM

1MB (location unknown)

SRAM Cache

32KB

BIOS

Mitsubishi/Phoenix

Dimensions

330mm x 218mm

I/O Options

16-bit external memory card, 16-bit proprietary local bus slots (2)

floppy drive interface, parallel port, serial ports (2)

NPU Options

80287/80387SX

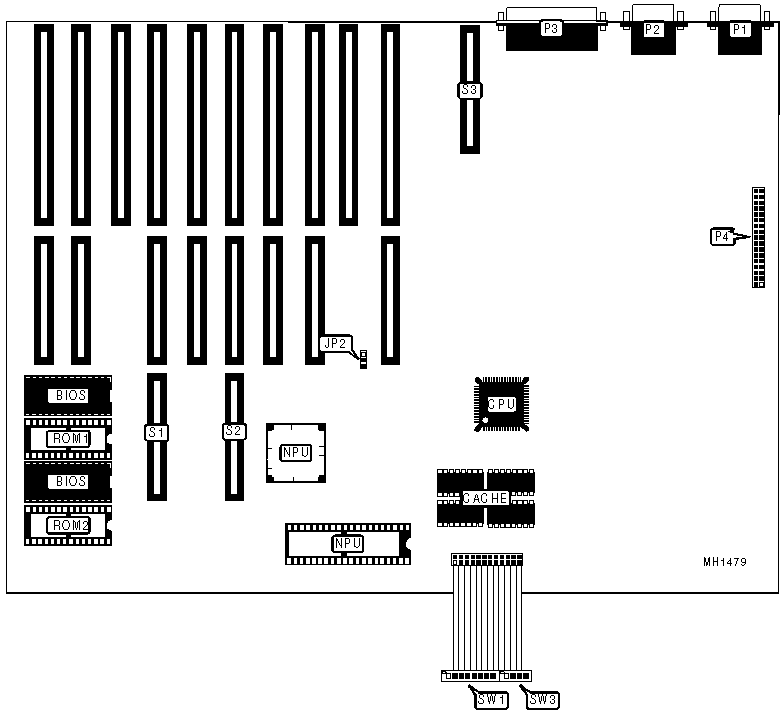

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port (COM1)

P1

Option ROM

ROM1

Serial port (COM2)

P2

Option ROM

ROM2

Parallel port

P3

16-bit proprietary local bus slots

S1 & S2

Floppy drive interface

P4

16-bit external memory card

S3

USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

Floppy drive interface enabled

JP2

pins 1 & 2 closed



Floppy drive interface disabled

JP2

pins 2 & 3 closed

»

Factory configured - do not alter

SW1/switch 1

On

»

Factory configured - do not alter

SW1/switch 2

Off

»

Factory configured - do not alter

SW1/switch 4

Off

»

Factory configured - do not alter

SW1/switch 6

Off

»

Monitor type select color

SW1/switch 8

On



Monitor type select monochrome

SW1/switch 8

Off

»

Cache enabled

SW2/switch 1

On



Cache disabled

SW2/switch 1

Off

»

Factory configured - do not alter

SW2/switch 2

Off

»

NPU enabled

SW2/switch 3

On



NPU disabled

SW2/switch 3

Off

»

External memory select 1MB

SW2/switch 4

Off



External memory select 2MB

SW2/switch 4

On

MEMORY MODE CONFIGURATION

Mode

Size

SW1/switch 3

SW1/switch 5



A

512KB (base)

Off

On

»

C

640KB (base)

Off

Off



D

512KB (external)

On

Off

SERIAL PORT CONFIGURATION

Serial Port 1 (P1)

Serial Port 2 (P2)

SW2/switch 5

SW2/Switch 6

»

COM1

COM2

Off

Off



COM1

Disabled

Off

On



Disabled

COM2

On

Off



Disabled

Disabled

On

On

PARALLEL PORT CONFIGURATION

LPT

SW2/switch 7

SW2/Switch 8

»

LPT1

Off

Off



LPT2

Off

On



LPT3

On

Off



Disabled

On

On
