MICRO-STAR INTERNATIONAL CO., LTD.
MS-5117
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133MHz |
|
Chip Set |
VIA |
|
Max. Onboard DRAM |
512MB |
|
Cache |
256/512/1024KB |
|
BIOS |
AMI/Award |
|
Dimensions |
280mm x 220mm |
|
I/O Options |
Parallel port, serial ports (2), floppy drive interface, IDE interfaces, 32-bit PCI slots(3) |
|
NPU Options |
None |
|

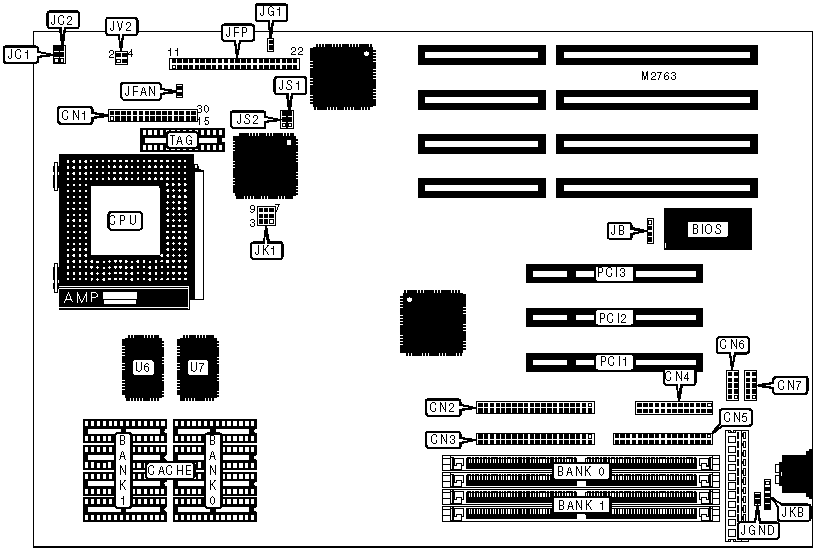

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Voltage Regulator Module |
CN1 |
Power LED & keylock |
JFP pins 1 - 5 |
|
IDE interface (secondary) |
CN2 |
Speaker |
JFP pins 7 & 10 |
|
IDE interface (primary) |
CN3 |
Turbo LED |
JFP pins 12 & 13 |
|
Parallel port |
CN4 |
Turbo switch |
JFP pins 15 - 17 |
|
Floppy drive interface |
CN5 |
Reset switch |
JFP pins 19 & 20 |
|
Serial port 1 |
CN6 |
IDE interface LED |
JFP pins 21 & 22 |
|
Serial port 2 |
CN7 |
PS/2 mouse port |
JKB |
|
External battery |
JB |
32-bit PCI slots |
PCI1 - PCI3 |
|
Chassis fan power |
JFAN | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
JG1 |
N/A |
|
» |
Ground type select keyboard |
JGND |
Closed |
|
Ground type select case |
JGND |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
2MB |
NONE |
(2) 256K x 36 |
|
4MB |
(2) 512K x 36 |
NONE |
|
4MB |
NONE |
(2) 512K x 36 |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
8MB |
NONE |
(2) 1M x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
16MB |
NONE |
(2) 2M x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
32MB |
NONE |
(2) 4M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
64MB |
NONE |
(2) 8M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 16M x 36 |
NONE |
|
128MB |
NONE |
(2) 16M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
130MB |
(2) 256K x 36 |
(2) 16M x 36 |
|
130MB |
(2) 16M x 36 |
(2) 256K x 36 |
|
132MB |
(2) 512K x 36 |
(2) 16M x 36 |
|
132MB |
(2) 16M x 36 |
(2) 512K x 36 |
|
136MB |
(2) 1M x 36 |
(2) 16M x 36 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 2M x 36 |
(2) 16M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 4M x 36 |
(2) 16M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 16M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 32M x 36 |
NONE |
|
256MB |
NONE |
(2) 32M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
258MB |
(2) 256K x 36 |
(2) 32M x 36 |
|
258MB |
(2) 32M x 36 |
(2) 256K x 36 |
|
260MB |
(2) 512K x 36 |
(2) 32M x 36 |
|
260MB |
(2) 32M x 36 |
(2) 512K x 36 |
|
264MB |
(2) 1M x 36 |
(2) 32M x 36 |
|
264MB |
(2) 32M x 36 |
(2) 1M x 36 |
|
272MB |
(2) 2M x 36 |
(2) 32M x 36 |
|
272MB |
(2) 32M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 4M x 36 |
(2) 32M x 36 |
|
288MB |
(2) 32M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 8M x 36 |
(2) 32M x 36 |
|
320MB |
(2) 32M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 16M x 36 |
(2) 32M x 36 |
|
384MB |
(2) 32M x 36 |
(2) 16M x 36 |
|
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
|
PIPELINE CACHE CONFIGURATION |
|
Note: If pipeline cache is on this board, it is factory installed at 256KB and is not configurable. The location is U6 & U7 and TAG. |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
|
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
(1) 32K x 8 |
|
Note: Depending on board revision, cache will either use this table or the above table. Board will not have both cache configurations. | |||
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JS1 |
JS2 |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
512KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
1MB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | |
|
Speed |
JK1 |
|
75MHz |
pins 1 & 2, 5 & 6, 7 & 8 closed |
|
80MHz |
pins 1 & 2, 4 & 5, 8 & 9 closed |
|
90MHz |
pins 2 & 3, 5 & 6, 8 & 9 closed |
|
100MHz |
pins 2 & 3, 4 & 5, 7 & 8 closed |
|
120MHz |
pins 2 & 3, 5 & 6, 8 & 9 closed |
|
133MHz |
pins 2 & 3, 4 & 5, 7 & 8 closed |
|
CPU VOLTAGE CONFIGURATION | |
|
Voltage |
JV2 |
|
3.3v |
pins 1 & 2, 3 & 4 closed |
|
3.5v |
pins 1 & 2 closed |
|
CPU BUS/CORE FREQUENCY CONFIGURATION | |||
|
CPU speed |
Ratio |
JC1 |
JC2 |
|
75MHz |
2/3 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
90MHz |
2/3 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
100MHz |
2/3 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
120MHz |
1/2 |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
133MHz |
1/2 |
pins 2 & 3 closed |
pins 1 & 2 closed |
