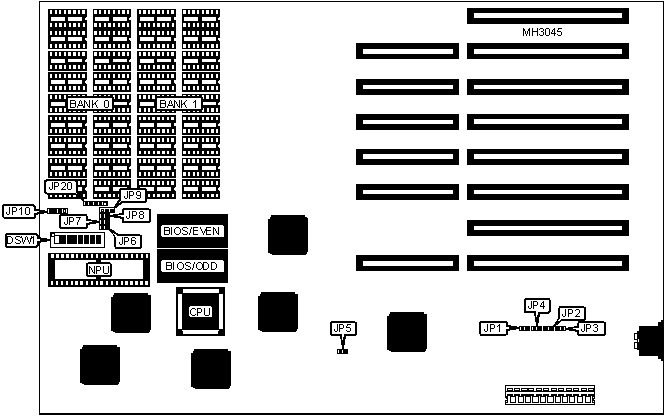

MORSE TECHNOLOGIES, INC.

KP 286 12MHZ

Processor

80286

Processor Speed

12MHz

Chip Set

Unidentified

Max. Onboard DRAM

16MB

Cache

None

BIOS

AMI

Dimensions

331mm x 220mm

I/O Options

None

NPU Options

80287

CONNECTIONS

Purpose

Location

Purpose

Location

Reset switch

JP6

Speaker

JP10

Turbo switch

JP7

Power LED & keylock

JP20

Turbo LED

JP8



USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

System speed select normal

DSW1/1

Off



System speed select turbo

DSW1/1

On

»

Monitor type select monochrome

DSW1/2

Off



Monitor type select color

DSW1/2

On

»

Factory configured - do not alter

DSW1/3

On

»

EMS port address o98h

DSW1/4

Off



EMS port address 0E8h

DSW1/4

On

»

PROM type select 27256

DSW1/5

Off



PROM type select 27128

DSW1/5

On

»

Turbo mode hardware setting enabled

JP9

pins 2 & 3 closed



Turbo mode software setting enabled

JP9

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

512KB

(18) 41256

NONE

640KB

(18) 41256

(18) 4164

1MB

(18) 41256

(18) 41256

2MB

(18) 411000

NONE

4MB

(18) 411000

(18) 411000

DRAM JUMPER CONFIGURATION

Size

DSW1/6

DSW1/7

DSW1/8

512KB

On

On

On

640KB

On

On

Off

1MB

On

Off

On

2MB

Off

On

On

4MB

Off

Off

Off

KEYBOARD BIOS CONFIGURATION (8742)

» Setting

JP1

JP2

JP3

JP4

»

Pin #30

Open

Open

Open

Closed

»

Pin #32

Closed

Open

Open

Open

»

Pin #27

Open

Closed

Open

Open

»

Pin #23

Open

Open

Closed

Open

VESA WAIT STATE CONFIGURATION

Wait states

JP5

0 wait states

Open

1 wait state

Closed
