OCEAN INFORMATION SYSTEMS, INC.

RHINO 5

Processor

CXM1/Pentium

Processor Speed

75/90/100/120/133/150MHz

Chip Set

OPTI

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

256/512/1024KB

BIOS

Award

Dimensions

330mm x 215mm

I/O Options

32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, VRM connector

NPU Options

None

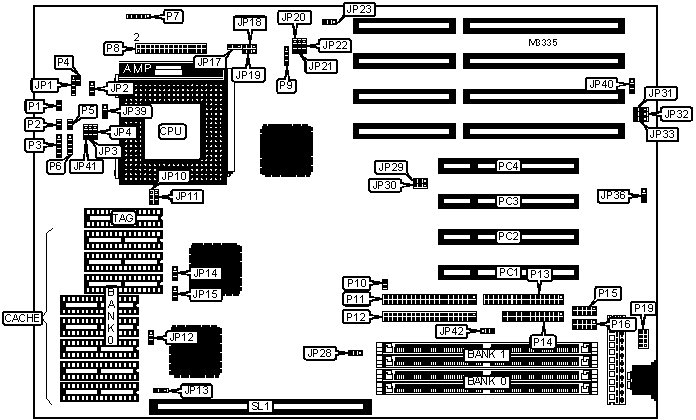

CONNECTIONS

Function

Label

Function

Label

Reset switch

P1

IDE interface 2

P11

Turbo LED

P2

IDE interface 1

P12

Power LED & keylock

P3

Floppy drive interface

P13

Chassis fan power

P4

Parallel port

P14

Turbo switch

P5

Serial port 1

P15

Speaker

P6

Serial port 2

P16

IR connector

P7

PS/2 mouse interface

P19

VRM connector

P8

32-bit PCI slots

PC1 - PC4

External battery

P9

Cache slot

SL1

IDE interface LED

P10



USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Fan voltage select 5v

JP1

Pins 1 & 2 closed



Fan voltage select 12v

JP1

Pins 2 & 3 closed

»

Battery type select internal

JP20

Pins 2 & 3 closed



Battery type select external

JP20

Pins 1 & 2 closed

»

CMOS memory normal operation

JP21

Pins 2 & 3 closed



CMOS memory clear

JP21

Pins 1 & 2 closed

»

Factory configured - do not alter

JP22

Pins 2 & 3 closed

»

Factory configured - do not alter (PCI clock = CPU clock/2)

JP23

Pins 2 & 3 closed



Parallel port IRQ select IRQ7

JP31

Pins 2 & 3 closed



Parallel port IRQ select IRQ5

JP31

Pins 1 & 2 closed

»

One floppy drive installed

JP36

Pins 1 & 2 closed



Two floppy drives installed

JP36

Pins 2 & 3 closed

»

Power good signal detect from power supply

JP40

Pins 1 & 2 closed



Power good signal detect from board

JP40

Pins 2 & 3 closed



Jumper information unavailable

JP41

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 32

None

4MB

(2) 512K x 32

None

4MB

(2) 256K x 32

(2) 256K x 32

6MB

(2) 256K x 32

(2) 512K x 32

8MB

(2) 1M x 32

None

8MB

(2) 512K x 32

(2) 512K x 32

10MB

(2) 256K x 32

(2) 1M x 32

12MB

(2) 512K x 32

(2) 1M x 32

16MB

(2) 2M x 32

None

16MB

(2) 1M x 32

(2) 1M x 32

18MB

(2) 256K x 32

(2) 2M x 32

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

20MB

(2) 512K x 32

(2) 2M x 32

24MB

(2) 1M x 32

(2) 2M x 32

32MB

(2) 4M x 32

None

32MB

(2) 2M x 32

(2) 2M x 32

34MB

(2) 256K x 32

(2) 4M x 32

36MB

(2) 512K x 32

(2) 4M x 32

40MB

(2) 1M x 32

(2) 4M x 32

48MB

(2) 2M x 32

(2) 4M x 32

64MB

(2) 8M x 32

None

64MB

(2) 4M x 32

(2) 4M x 32

66MB

(2) 256K x 32

(2) 8M x 32

68MB

(2) 512K x 32

(2) 8M x 32

72MB

(2) 1M x 32

(2) 8M x 32

80MB

(2) 2M x 32

(2) 8M x 32

96MB

(2) 4M x 32

(2) 8M x 32

128MB

(2) 8M x 32

(2) 8M x 32

Note: Board accepts EDO memory. Board also accepts x 36 SIMMs.

DRAM JUMPER CONFIGURATION

Type

JP28

Fast page mode

Pins 1 & 2 closed

EDO

Pins 2 & 3 closed

CACHE CONFIGURATION

Size

Bank 0

TAG

SL1

256KB (A)

(8) 32K x 8

(1) 32K x 8

Not installed

256KB (B)

None

(1) 32K x 8

Installed

512KB (A)

(8) 64K x 8

(1) 32K x 8

Not installed

512KB (B)

None

(1) 32K x 8

Installed

1MB

(8) 128K x 8

(1) 32K x 8

Not installed

CACHE JUMPER CONFIGURATION

Size

JP3

JP4

JP10

256KB (A)

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

512KB (A

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

1MB

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

CACHE TYPE CONFIGURATION

Type

JP42

Asynchronous

Pins 1 & 2 closed

Synchronous

Pins 2 & 3 closed

CACHE VOLTAGE SELECTION

Voltage

JP12

JP13

JP14

JP15

3.3v

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

5v

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

CPU SPEED SELECTION

Speed

JP29

JP30

75MHz

Pins 1 & 2 closed

Pins 2 & 3 closed

90MHz

Pins 2 & 3 closed

Pins 1 & 2 closed

100MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

120MHz

Pins 2 & 3 closed

Pins 1 & 2 closed

133MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

150MHz

Pins 2 & 3 closed

Pins 1 & 2 closed

CPU TYPE SELECTION

Type

JP11

Cyrix

Pins 2 & 3 closed

Intel

Pins 1 & 2 closed

CPU MULTIPLIER SELECTION

Multiplier

JP2

JP39

1.5x

Pins 2 & 3 closed

Pins 2 & 3 closed

2x

Pins 1 & 2 closed

Pins 2 & 3 closed

2.5x

Pins 1 & 2 closed

Pins 1 & 2 closed

VRM SELECTION

Type

P8

»

VRM not installed (P54C/P54CQS/P54CS)

Pins 7 & 9, 8 & 10, 11 & 13, 12 & 14 closed



VRM installed (P55C)

Installed

DMA CHANNEL SELECTION

Channel

JP32

JP33

»

1

Pins 1 & 2 closed

Pins 1 & 2 closed



3

Pins 2 & 3 closed

Pins 2 & 3 closed

PS/2 MOUSE SELECTION

Setting

JP17

JP18

JP19

»

Enabled

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



Disabled

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed
