MICRONICS COMPUTERS, INC.

M6ME

Processor

Pentium Pro

Processor Speed

120/133/150/166/180/200MHz

Chip Set

Intel

Video Chip Set

Cirrus Logic

Maximum Onboard Memory

512MB (EDO supported)

Maximum Video Memory

2MB

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

Phoenix

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (3), floppy drive interface, IDE interface, SCSI interface, Ultra Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VESA feature connector, VGA interface, IR connector, VRM connectors (2), soft power standby/signal connector, soft power switch

NPU Options

None

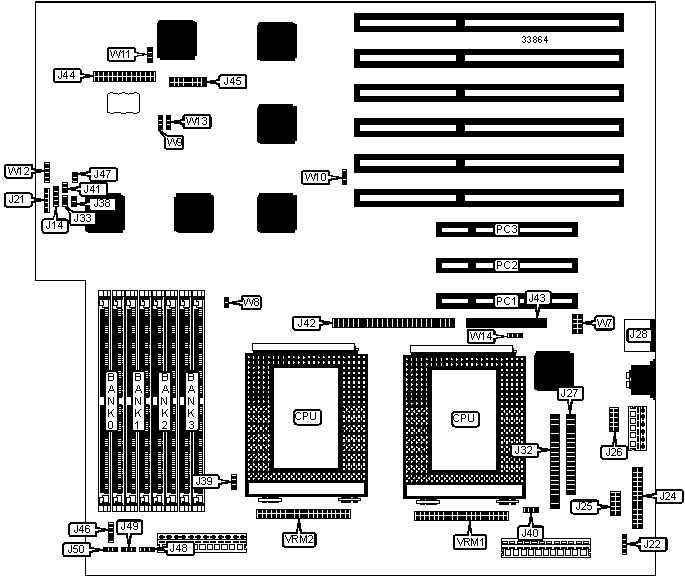

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

J14

Chassis fan power

J40

Power LED & keylock

J21

Reset switch

J41

IR connector

J22

Fast SCSI interface

J42

Parallel port

J24

Ultra Wide SCSI interface

J43

Serial port 1

J25

VESA feature connector

J44

Serial port 2

J26

VGA interface

J45

Floppy drive interface

J27

Soft power standby/signal connector

J46

PS/2 mouse port

J28

Soft power switch

J47

IDE interface

J32

32-bit PCI slots

PC1 - PC3

IDE interface LED

J33

VRM connector 1

VRM1

Turbo LED

J38

VRM connector 2

VRM2

Chassis fan power

J39



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

W9

Pins 1 & 2 closed



CMOS memory clear

W9

Pins 2 & 3 closed

»

SCSI enabled

W10

Pins 1 & 2 closed



SCSI disabled

W10

Pins 2 & 3 closed

»

On board video enabled

W11

Pins 1 & 2 closed



On board video disabled

W11

Pins 2 & 3 closed



Soft power enabled

W12

Pins 1 & 2 closed



Soft power forced on (for power cycling)

W12

Pins 2 & 3 closed

»

Real time clock normal operation

W13

Pins 1 & 2 closed



Real time clock clear

W13

Pins 2 & 3 closed

»

Ultra Wide SCSI select auto select

W14

Pins 1 & 2 closed



Ultra Wide SCSI select Ultra Wide SCSI

W14

Pins 2 & 3 closed

»

Factory configured - do not alter

J48

Unidentified

»

Factory configured - do not alter

J49

Unidentified

»

Factory configured - do not alter

J50

Unidentified

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(2) 1M x 36

None

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

None

16MB

(2) 2M x 36

None

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

None

24MB

(2) 2M x 36

(2) 1M x 36

None

None

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 4M x 36

None

None

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

40MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

None

40MB

(2) 4M x 36

(2) 1M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

None

48MB

(2) 4M x 36

(2) 2M x 36

None

None

56MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

56MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

56MB

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

None

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

None

None

64MB

(2) 8M x 36

None

None

None

72MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

72MB

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

None

72MB

(2) 8M x 36

(2) 1M x 36

None

None

80MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

80MB

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

80MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

None

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

None

80MB

(2) 8M x 36

(2) 2M x 36

None

None

88MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

88MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

88MB

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

96MB

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

None

96MB

(2) 8M x 36

(2) 4M x 36

None

None

104MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

104MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

104MB

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

None

112MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

112MB

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

112MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

112MB

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

None

120MB

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

128MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

128MB

(2) 8M x 36

(2) 8M x 36

None

None

128MB

(2) 16M x 36

None

None

None

192MB

(2) 16M x 36

(2) 8M x 36

None

None

200MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

200MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

200MB

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

None

208MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

208MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

208MB

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

208MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

None

216MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

224MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

224MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

224MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

224MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

None

232MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

240MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

(2) 2M x 36

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

256MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

None

256MB

(2) 16M x 36

(2) 16M x 36

None

None

264MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

264MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

272MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 2M x 36

272MB

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

280MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

(2) 1M x 36

288MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

288MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

288MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

None

296MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 1M x 36

304MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

320MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

320MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

328MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

336MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

352MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

None

392MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

400MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

416MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

448MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

512MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: Board accepts 1MB/2MB video memory. The location and chip sizes are unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

W7

W8

120MHz

60MHz

2x

1 & 2, 3 & 4, 5 & 6, 7 & 8

Closed

133MHz

66MHz

2x

1 & 2, 3 & 4, 5 & 6, 7 & 8

Open

150MHz

60MHz

2.5x

1 & 2, 3 & 4, 5 & 6

Closed

166MHz

66MHz

2.5x

1 & 2, 3 & 4, 5 & 6

Open

180MHz

66MHz

3x

1 & 2, 3 & 4, 7 & 8

Closed

200MHz

66MHz

3x

1 & 2, 3 & 4, 7 & 8

Open
