Processor	NX586
Processor Speed	75/80/90/100MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	192MB
Maximum Video Memory	None
Cache	256KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	32-bit VESA local bus slots (2)
NPU Options	None

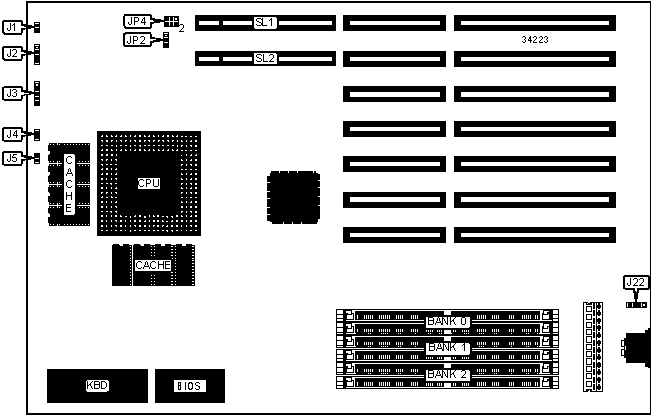

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	J1	Turbo LED	J5
Speaker	J2	External battery	J22
Power LED & keylock	J3	32-bit VESA local bus slots	SL1 & SL2
Turbo switch	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP2	Pins 1 & 2 closed
	CMOS memory clear	JP2	Pins 2 & 3 closed
	VL bus burst support read only enabled	JP4/pins 5 & 6	Closed
	VL bus burst support read only disabled	JP4/pins 5 & 6	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
2MB	(2) 256K x 36	None	None
4MB	(2) 256K x 36	(2) 256K x 36	None
4MB	(2) 512K x 36	None	None
8MB	(2) 512K x 36	(2) 512K x 36	None
10MB	(2) 1M x 36	(2) 256K x 36	None
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	(2) 2M x 36	None	None
20MB	(2) 2M x 36	(2) 512K x 36	None
22MB	(2) 2M x 36	(2) 512K x 36	(2) 256K x 36
24MB	(2) 2M x 36	(2) 1M x 36	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None	None
32MB	(2) 2M x 36	(2) 2M x 36	None
34MB	(2) 4M x 36	(2) 256K x 36	None
38MB	(2) 4M x 36	(2) 256K x 36	(2) 512K x 36
40MB	(2) 4M x 36	(2) 1M x 36	None
48MB	(2) 4M x 36	(2) 2M x 36	None
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
56MB	(2) 4M x 36	(2) 2M x 36	(2) 1M x 36
64MB	(2) 8M x 36	None	None
64MB	(2) 4M x 36	(2) 4M x 36	None
66MB	(2) 8M x 36	(2) 256K x 36	None
76MB	(2) 8M x 36	(2) 512K x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36	None
80MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36
88MB	(2) 8M x 36	(2) 2M x 36	(2) 1M x 36
96MB	(2) 8M x 36	(2) 4M x 36	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36
104MB	(2) 8M x 36	(2) 4M x 36	(2) 1M x 36
112MB	(2) 8M x 36	(2) 4M x 36	(2) 2M x 36
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	None
136MB	(2) 8M x 36	(2) 8M x 36	(2) 1M x 36
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
Note: Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Note: 256KB cache is factory installed and is not configurable.

VL BUS WAIT STATE SELECTION
Setting	JP4/pins 1 & 2
0	Open
1	Closed

VL BUS SPEED SELECTION
Speed	JP4/pins 3 & 4
<= 33MHz	Open
>33 MHz	Closed
