MICRO-STAR INTERNATIONAL CO., LTD.
MS-5144
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
90/100/120/133/150/166/200MHz |
|
Chip Set |
SIS |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
384MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
AMI/Award |
|
Dimensions |
250mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector |
|
NPU Options |
None |
|

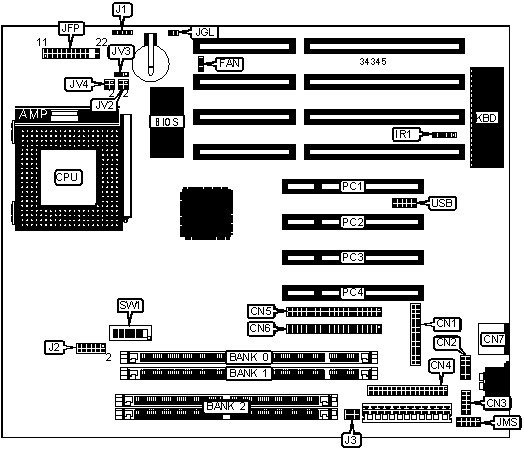

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
Power LED & keylock |
JFP/pins 1 - 5 |
|
Serial port 2 |
CN2 |
Speaker |
JFP/pins 7 - 10 |
|
Serial port 1 |
CN3 |
Turbo LED |
JFP/pins 12 & 13 |
|
Floppy drive interface |
CN4 |
Reset switch |
JFP/pins 19 & 20 |
|
IDE interface 2 |
CN5 |
IDE interface LED |
JFP/pins 21 & 22 |
|
IDE interface 1 |
CN6 |
Green PC LED |
JGL |
|
PS/2 mouse port |
CN7 |
PS/2 mouse interface |
JMS |
|
Chassis fan power |
FAN |
32-bit PCI slots |
PC1 – PC4 |
|
IR connector |
IR1 |
USB connector |
USB |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J1 |
Unidentified |
|
» |
Factory configured - do not alter |
J3 |
Unidentified |
|
DIMM/DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
12MB |
(1) 1M x 64 |
None |
(2) 512K x 36 |
|
16MB |
(1) 2M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
16MB |
(1) 1M x 64 |
None |
(2) 1M x 36 |
|
20MB |
(1) 2M x 64 |
None |
(2) 512K x 36 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
24MB |
(1) 1M x 64 |
None |
(2) 2M x 36 |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
32MB |
(1) 2M x 64 |
None |
(2) 2M x 36 |
|
36MB |
(1) 4M x 64 |
None |
(2) 512K x 36 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
40MB |
(1) 1M x 64 |
None |
(2) 4M x 36 |
|
40MB |
(1) 4M x 64 |
None |
(2) 1M x 36 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
48MB |
(1) 2M x 64 |
None |
(2) 4M x 36 |
|
48MB |
(1) 4M x 64 |
None |
(2) 2M x 36 |
|
64MB |
(1) 8M x 64 |
None |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
64MB |
(1) 4M x 64 |
None |
(2) 4M x 36 |
|
68MB |
(1) 8M x 64 |
None |
(2) 512K x 36 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 1M x 64 |
None |
(2) 8M x 36 |
|
72MB |
(1) 8M x 64 |
None |
(2) 1M x 36 |
|
DIMM/DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 2M x 64 |
None |
(2) 8M x 36 |
|
80MB |
(1) 8M x 64 |
None |
(2) 2M x 36 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 8M x 64 |
None |
(2) 4M x 36 |
|
96MB |
(1) 4M x 64 |
None |
(2) 8M x 36 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
128MB |
(1) 8M x 64 |
None |
(2) 8M x 36 |
|
132MB |
(1) 16M x 64 |
None |
(2) 512K x 36 |
|
136MB |
(1) 1M x 64 |
None |
(2) 16M x 36 |
|
136MB |
(1) 16M x 64 |
None |
(2) 1M x 36 |
|
144MB |
(1) 2M x 64 |
None |
(2) 16M x 36 |
|
144MB |
(1) 16M x 64 |
None |
(2) 2M x 36 |
|
160MB |
(1) 4M x 64 |
None |
(2) 16M x 36 |
|
160MB |
(1) 16M x 64 |
None |
(2) 4M x 36 |
|
192MB |
(1) 8M x 64 |
None |
(2) 16M x 36 |
|
192MB |
(1) 16M x 64 |
None |
(2) 8M x 36 |
|
256MB |
(1) 32M x 64 |
None |
None |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
256MB |
(1) 16M x 64 |
None |
(2) 16M x 36 |
|
384MB |
(1) 32M x 64 |
None |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. Banks 0 & 1 are interchangeable. | |||
|
DIMM VOLTAGE CONFIGURATION | |
|
Voltage |
J2 |
|
3.3v |
Pins 1 & 2, 3 & 4 closed |
|
5v |
Pins 9 & 10, 11 & 12 closed |
|
CACHE CONFIGURATION |
|
Note: The location and chip sizes are unidentified. |
|
