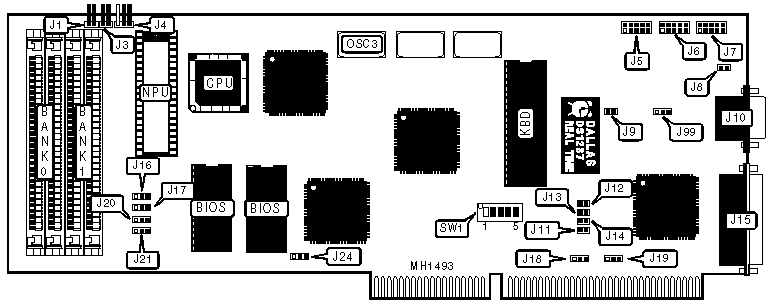

QUALOGY, INC.

QPC-5132

Processor

80286

Processor Speed

8/10/12.5/16MHz

Chip Set

G2

Max. Onboard DRAM

4MB

SRAM Cache

NONE

BIOS

AMI

Dimensions

330mm x 120mm

I/O Options

Parallel port, serial ports (2-RS232, 1-RS422)

NPU Options

80287

CONNECTIONS

Purpose

Location

Purpose

Location

Reset switch

J1

Serial port B (RS422)

J6

Speaker

J3

Serial port B (RS232)

J7

Keylock

J4

Serial port A (RS232)

J10

Keyboard

J5

Parallel port

J15

USER CONFIGURABLE SETTINGS

Function

Jumper/Switch


»

Monitor type select color

J9

Open



Monitor type select monochrome

J9

Closed

»

Parallel port enabled

J12

Closed



Parallel port disabled

J12

Open

»

BIOS type select 27256

J24

pins 1 & 2 closed



BIOS type select 27512

J24

pins 2 & 3 closed

»

RS232 12V from backplane

J99

pins 2 & 3 closed



RS232 12V from card

J99

pins 1 & 2 closed

»

Bus speed select slow

SW1/switch 2

Off



Bus speed select fast

SW1/switch 2

On

»

CPU speed select OSC3

SW1/switch 5

Off



CPU speed select OSC3

SW1/switch 5

On

DRAM CONFIGURATION

Size

Bank 0

Bank 1

SW1/switch 1

SW1/switch 3

SW1/switch 4

512KB

(2) 256K x 9

NONE

On

On

Off

1MB

(2) 256K x 9

(2) 256K x 9

Off

On

Off

2MB

(2) 1M x 9

NONE

Off

Off

On

4MB

(2) 1M x 9

(2) 1M x 9

Off

Off

Off

SERIAL PORT CONFIGURATION

RS422 (J6)

RS232 (J7)

RS232 (J10)

J8

J11

J13

J14

J18

J19

Disabled

COM2

COM1

Closed

Closed

Closed

Closed

pins 1&2

pins 1&2

COM2

Disabled

COM1

Open

Closed

Closed

Closed

pins 1&2

pins 1&2

Disabled

COM1

COM2

Closed

Closed

Closed

Open

pins 2&3

pins 2&3

COM1

Disabled

COM2

Open

Closed

Closed

Open

pins 2&3

pins 2&3

Disabled

Disabled

Disabled

N/A

Open

Open

N/A

N/A

N/A

Note:Serial port B is configurable as either a RS422 port using J6 or a RS232 port using J7,

but both connectors (J6 & J7) cannot be active at the same time.

Pins designated should be in the closed position.

MEMORY WAIT STATES CONFIGURATION

Wait state

CPU Speed

J16

J17

J20

J21

0 wait states

£

pins 1 & 2

pins 1 & 2

pins 1 & 2

pins 1 & 2

1 wait state

£

pins 2 & 3

pins 2 & 3

pins 2 & 3

pins 2 & 3

1 wait state

16MHz

pins 2 & 3

pins 1 & 2

pins 2 & 3

pins 2 & 3

Note: Pins designated should be in the closed position
