REPLY CORPORATION
PROLINEA,VALUEPOINT,PS/1 PENTATHLON/PCI
|
Processor |
Pentium |
|
Processor Speed |
75/90/100MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
128MB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port |
|
NPU Options |
None |
|

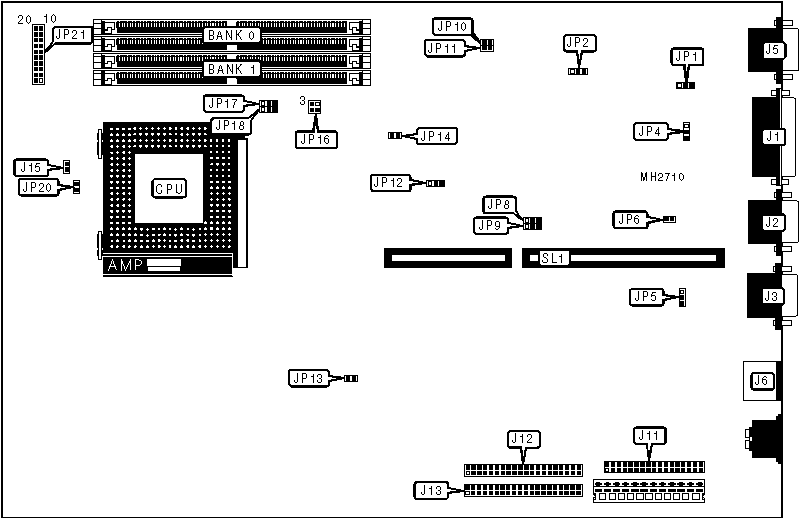

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
J1 |
IDE interface (secondary) |
J12 |
|
Serial port 2 |
J2 |
IDE interface (primary) |
J13 |
|
Serial port 1 |
J3 |
IDE interface LED |
J15 |
|
VGA port |
J5 |
Power LED |
JP21 pins 2 & 3 |
|
PS/2 mouse port |
J6 |
Riser Card |
SL1 |
|
Floppy drive interface |
J11 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
pins 1 & 2 closed |
|
» |
On board video enabled |
JP2 |
pins 1 & 2 closed |
|
On board video disabled |
JP2 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP4 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP5 |
pins 2 & 3 closed |
|
» |
CMOS memory normal operation |
JP6 |
Open |
|
CMOS memory clear |
JP6 |
Closed | |
|
» |
Factory configured - do not alter |
JP8 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP9 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP10 |
Open |
|
» |
Factory configured - do not alter |
JP11 |
Open |
|
» |
Factory configured - do not alter |
JP12 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP13 |
Open |
|
» |
Factory configured - do not alter |
JP17 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP18 |
pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
JP20 |
N/A |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
(2) 512K x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
NONE |
|
DRAM JUMPER CONFIGURATION | |
|
Size |
JP14 |
|
4MB |
pins 1 & 2, 3 & 4 closed |
|
8MB |
pins 1 & 2, 3 & 4 closed |
|
8MB |
pins 2 & 3 closed |
|
16MB |
pins 2 & 3 closed |
|
16MB |
pins 1 & 2, 3 & 4 closed |
|
32MB |
pins 1 & 2, 3 & 4 closed |
|
36MB |
pins 1 & 2, 3 & 4 closed |
|
48MB |
pins 1 & 2, 3 & 4 closed |
|
64MB |
pins 2 & 3 closed |
|
64MB |
pins 1 & 2, 3 & 4 closed |
|
128MB |
pins 1 & 2, 3 & 4 closed |
|
128MB |
pins 1 & 2, 3 & 4 closed |
|
CPU SPEED CONFIGURATION | |
|
Speed |
JP16 |
|
75MHz |
pins 1 & 2, 3 & 4 closed |
|
90MHz |
pins 3 & 4 closed |
|
100MHz |
Open |
