RADISYS CORPORATION

EPC-41

Processor

80386EX

Processor Speed

Unidentified

Chip Set

Unidentified

Video Chip Set

Cirrus Logic

Maximum Onboard Memory

16MB

Maximum Video Memory

512KB

Cache

None

BIOS

Phoenix

Dimensions

138mm x 138mm

I/O Options

Floppy drive interface, IDE interface, PS/2 mouse port, serial ports (2), VGA port, flat panel connector

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Flat panel connector

CN1

Serial port 2

JP2

PC card carrier

CN2

Serial port 1

JP3

PS/2 mouse port

J3

IDE interface

JP11

VGA port

J4

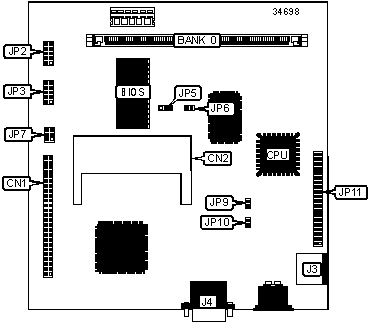

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Flash BIOS write protect enabled

JP5

Pins 2 & 3 closed



Flash BIOS write protect disabled

JP5

Pins 1 & 2 closed

»

Factory configured - do not alter (Flat panel selection)

JP7

Open

»

Power-on self test (POST) disabled

JP9

Open



Power-on self test (POST) enabled

JP9

Closed

»

Flash BIOS force update disabled

JP10

Open



Flash BIOS force update enabled

JP10

Closed

SIMM CONFIGURATION

Size

Bank 0

1MB

(1) 256K x 36

2MB

(1) 512K x 36

4MB

(1) 1M x 36

8MB

(1) 2M x 36

16MB

(1) 4M x 36

SIMM JUMPER CONFIGURATION

Size

JP6

1MB

Open

2MB

Closed

4MB

Open

8MB

Closed

16MB

Closed

VIDEO MEMORY CONFIGURATION

Note: 512KB video memory is factory installed and is not configurable.
