SOYO COMPUTER CO., LTD.

SY-013/SY-014

Processor

80386DX

Processor Speed

20/25MHz

Chip Set

C & T

Max. Onboard DRAM

8MB

Cache

None

BIOS

AMI

Dimensions

330.2mm x 218.4mm

I/O Options

32-bit external memory card slots (2)

NPU Options

80287/80387/3167

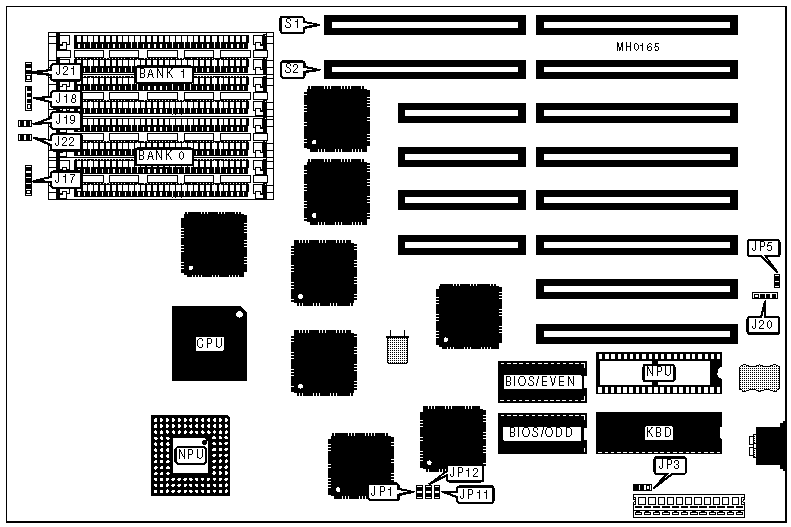

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J17

Turbo switch

J21

Speaker

J18

Turbo LED

J22

Reset switch

J19

32-bit external memory card

S1

External battery

J20

32-bit external memory card

S2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select monochrome

JP3

pins 2 & 3 closed



Monitor type select color

JP3

pins 1 & 2 closed

»

Battery select internal

JP5

Open



Battery select external

JP5

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

NPU JUMPER CONFIGURATION

Type

JP1

JP11

JP12

80287

Closed

Open

Open

80387

Open

Closed

Closed

3167

Open

Open

Closed
