SIEMENS NIXDORF INFORMATIONSSYSTEME AG

486 MODEL 403EISA



Processor

80486DX

Processor Speed

33MHz

Chip Set

Unidentified

Max. Onboard DRAM

64MB

Cache

8KB

BIOS

Phoenix

Dimensions

355mm x 304mm

I/O Options

Parallel ports (2), PS/2 mouse port, serial ports (2), floppy drive interface

NPU Options

4167

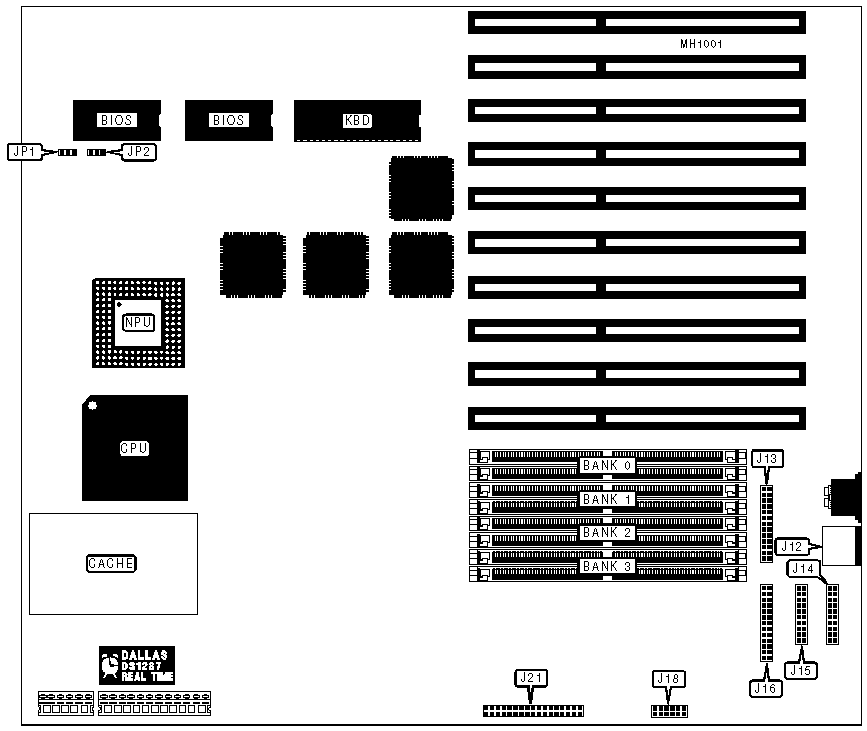

CONNECTIONS

Purpose

Location

Purpose

Location

Mouse port

J12

Parallel port

J16

Auxillary parallel port

J13

Front panal indicators

J18

Serial port 1

J14

Floppy drive interface

J21

Serial port 2

J15



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation

JP1

pins 1 & 2 closed



CMOS memory clear

JP1

pins 2 & 3 closed

»

Password enabled

JP2

pins 1 & 2 closed



Password disabled

JP2

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

2MB

(2) 256K x 36

NONE

NONE

NONE

4MB

(2) 256K x 36

(2) 256K x 36

NONE

NONE

6MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

NONE

8MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

8MB

(2) 1M x 36

NONE

NONE

NONE

10MB

(2) 256K x 36

(2) 1M x 36

NONE

NONE

12MB

(2) 256K x 36

(2) 256K x 36

(2) 1M x 36

NONE

14MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

(2) 1M x 36

16MB

(2) 1M x 36

(2) 1M x 36

NONE

NONE

18MB

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

NONE

20MB

(2) 256K x 36

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

NONE

26MB

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 4M x 36

NONE

NONE

NONE

34MB

(2) 256K x 36

(2) 4M x 36

NONE

NONE

36MB

(2) 256K x 36

(2) 256K x 36

(2) 4M x 36

NONE

38MB

(2) 256K x 36

(2) 256K x 36

(2) 256K x 36

(2) 4M x 36

40MB

(2) 1M x 36

(2) 4M x 36

NONE

NONE

42MB

(2) 256K x 36

(2) 1M x 36

(2) 4M x 36

NONE

44MB

(2) 256K x 36

(2) 256K x 36

(2) 1M x 36

(2) 4M x 36

48MB

(2) 1M x 36

(2) 1M x 36

(2) 4M x 36

NONE

50MB

(2) 256K x 36

(2) 1M x 36

(2) 1M x 36

(2) 4M x 36

56MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 4M x 36

64MB

(2) 4M x 36

(2) 4M x 36

NONE

NONE
