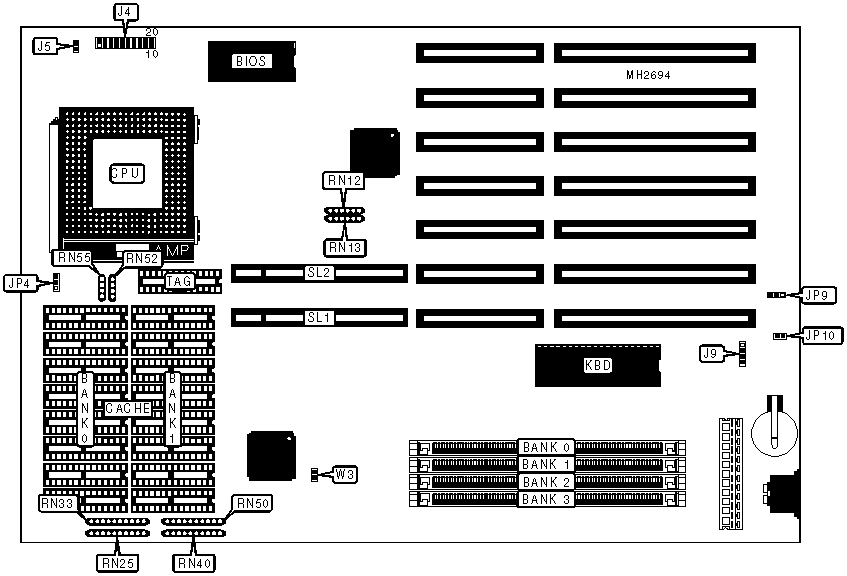

TMC RESEARCH CORPORATION

PAT45PVS (VER.2.0)

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

Unidentified

Max. Onboard DRAM

128MB

Cache

256/512KB

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slots (2)

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

J4 pins 1 - 4

Power LED & keylock

J4 pins11 - 15

Turbo LED

J4 pins 8 & 18

External battery

J9

Reset switch

J4 pins 9 & 19

32-bit VESA local bus slots

SL1 - SL2

IDE interface LED

J4 pins 10 & 20



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

Ľ

Battery type select internal

JP9

pins 2 & 3 closed



Battery type select external

JP9

Open



CMOS memory clear

JP9

pins 1 & 2 closed

Ľ

Monitor type select color

JP10

Closed



Monitor type select monochrome

JP10

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

4MB

(1) 1M x 36

NONE

NONE

NONE

8MB

(1) 1M x 36

NONE

(1) 1M x 36

NONE

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

8MB

(1) 2M x 36

NONE

NONE

NONE

12MB

(1) 1M x 36

NONE

(1) 2M x 36

NONE

16MB

(1) 1M x 36

NONE

(1) 1M x 36

(1) 2M x 36

16MB

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

NONE

16MB

(1) 2M x 36

NONE

(1) 2M x 36

NONE

16MB

(1) 4M x 36

NONE

NONE

NONE

20MB

(1) 1M x 36

NONE

(1) 2M x 36

(1) 2M x 36

20MB

(1) 1M x 36

NONE

(1) 4M x 36

NONE

24MB

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

24MB

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

NONE

24MB

(1) 2M x 36

NONE

(1) 2M x 36

(1) 2M x 36

24MB

(1) 2M x 36

NONE

(1) 4M x 36

NONE

32MB

(1) 4M x 36

NONE

(1) 4M x 36

NONE

32MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

32MB

(1) 8M x 36

NONE

NONE

NONE

36MB

(1) 1M x 36

NONE

(1) 8M x 36

NONE

40MB

(1) 1M x 36

NONE

(1) 1M x 36

(1) 8M x 36

40MB

(1) 1M x 36

(1) 1M x 36

(1) 8M x 36

NONE

40MB

(1) 2M x 36

NONE

(1) 8M x 36

NONE

44MB

(1) 1M x 36

NONE

(1) 2M x 36

(1) 8M x 36

48MB

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

(1) 8M x 36

48MB

(1) 2M x 36

NONE

(1) 2M x 36

(1) 8M x 36

48MB

(1) 4M x 36

NONE

(1) 8M x 36

NONE

52MB

(1) 1M x 36

NONE

(1) 4M x 36

(1) 8M x 36

56MB

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

(1) 8M x 36

56MB

(1) 2M x 36

NONE

(1) 4M x 36

(1) 8M x 36

64MB

(1) 4M x 36

NONE

(1) 4M x 36

(1) 8M x 36

64MB

(1) 4M x 36

(1) 4M x 36

(1) 8M x 36

NONE

64MB

(1) 8M x 36

NONE

(1) 8M x 36

NONE

64MB

(1) 16M x 36

NONE

NONE

NONE

68MB

(1) 1M x 36

NONE

(1) 8M x 36

(1) 8M x 36

72MB

(1) 1M x 36

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

72MB

(1) 2M x 36

NONE

(1) 8M x 36

(1) 8M x 36

80MB

(1) 4M x 36

NONE

(1) 8M x 36

(1) 8M x 36

DRAM CONFIGURATION (CONíT)

Size

Bank 0

Bank 1

Bank 2

Bank 3

96MB

(1) 4M x 36

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

96MB

(1) 8M x 36

NONE

(1) 8M x 36

(1) 8M x 36

96MB

(1) 16M x 36

NONE

(1) 8M x 36

NONE

128MB

(1) 16M x 36

NONE

(1) 8M x 36

(1) 8M x 36

DRAM JUMPER CONFIGURATION

Setting

RN12

RN13

All SIMM types installed

Installed

Not installed

16M x 36 SIMM only intalled

Not installed

Installed

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

256KB

(8) 8K x 8

(8) 8K x 8

(1) 8K x 8

512KB

(8) 32K x 8

(8) 32K x 8

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP4

RN52

RN55

256KB

Open

Installed

Not installed

512KB

pins 2 & 3 closed

Not installed

Installed

VESA BUS SPEED CONFIGURATION

Speed

RN25

RN33

RN40

RN50

25MHz

Installed

Not installed

Not installed

Not installed

33MHz

Not installed

Installed

Not installed

Not installed

40MHz

Not installed

Not installed

Installed

Not installed

50iMHz

Installed

Not installed

Not installed

Not installed

50MHz

Not installed

Not installed

Not installed

Installed

66iMHz

Not installed

Installed

Not installed

Not installed

VESA WAIT STATE CONFIGURATION

Wait states

W3

0 wait states

Open

1 wait state

Closed
