SW-486VM

SKYWELL TECHNOLOGY CORPORATION, LTD.

SW-486VM

Processor

UMCSX/80486DX/AM486DX2/80486DX2/TI486DX4/AM486DX4/ 8046DX4/CX5X86/AM5X86

Processor Speed

25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz

Chip Set

VIA

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

128/256/512/1024KB

BIOS

Award

Dimensions

250mm x 220mm

I/O Options

32-bit PCI slots (3), floppy drive interface, game interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2)

NPU Options

None

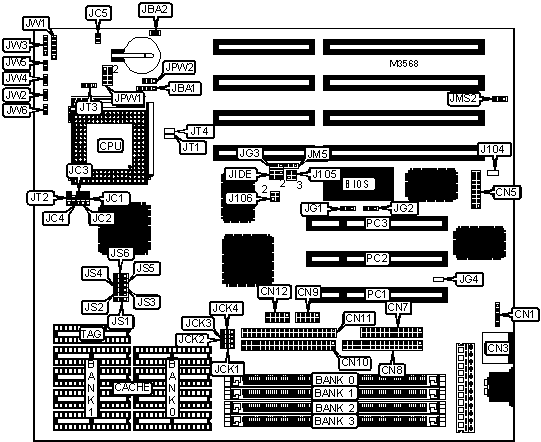

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse interface

CN1

External battery

JBA1

PS/2 mouse port

CN3

External battery

JBA2

Game interface

CN5

Power LED & keylock

JW1

Parallel port

CN7

Turbo LED

JW2

Floppy drive interface

CN8

Speaker

JW3

Serial port 1

CN9

Turbo switch

JW4

IDE interface 1

CN10

Reset switch

JW5

IDE interface 2

CN11

IDE interface LED

JW6

Serial port 2

CN12

32-bit PCI slots

PC1 - PC3

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J104

Unidentified

»

Factory configured - do not alter

J105

Unidentified

»

Factory configured - do not alter

J106

Unidentified

»

Factory configured - do not alter

JIDE

Unidentified

»

Factory configured - do not alter

JG1

Unidentified

»

Factory configured - do not alter

JG2

Unidentified

»

Factory configured - do not alter

JG3

Unidentified

»

Factory configured - do not alter

JG4

Unidentified

»

Factory configured - do not alter

JM5

Unidentified

»

Factory configured - do not alter

JMS2

Unidentified

»

Factory configured - do not alter

JT1

Unidentified

»

Factory configured - do not alter

JT4

Unidentified

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

None

None

None

2MB

(1) 512K x 36

None

None

None

2MB

(1) 256K x 36

(1) 256K x 36

None

None

3MB

(1) 512K x 36

(1) 256K x 36

None

None

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

None

3MB

(1) 256K x 36

(1) 512K x 36

None

None

4MB

(1) 1M x 36

None

None

None

4MB

(1) 512K x 36

(1) 256K x 36

(1) 256K x 36

None

4MB

(1) 512K x 36

(1) 512K x 36

None

None

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 1M x 36

(1) 256K x 36

None

None

5MB

(1) 512K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

None

5MB

(1) 256K x 36

(1) 1M x 36

None

None

6MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

6MB

(1) 1M x 36

(1) 512K x 36

None

None

6MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

None

6MB

(1) 512K x 36

(1) 1M x 36

None

None

7MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

7MB

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

8MB

(1) 2M x 36

None

None

None

8MB

(1) 1M x 36

(1) 512K x 36

(1) 512K x 36

None

8MB

(1) 1M x 36

(1) 1M x 36

None

None

8MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

9MB

(1) 2M x 36

(1) 256K x 36

None

None

9MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

None

9MB

(1) 256K x 36

(1) 2M x 36

None

None

10MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

None

10MB

(1) 2M x 36

(1) 512K x 36

None

None

10MB

(1) 1M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

10MB

(1) 512K x 36

(1) 1M x 36

(1) 1M x 36

None

10MB

(1) 512K x 36

(1) 2M x 36

None

None

11MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

12MB

(1) 2M x 36

(1) 512K x 36

(1) 512K x 36

None

12MB

(1) 2M x 36

(1) 1M x 36

None

None

12MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

None

12MB

(1) 1M x 36

(1) 2M x 36

None

None

13MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

14MB

(1) 2M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

14MB

(1) 512K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

None

None

None

16MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

None

16MB

(1) 2M x 36

(1) 2M x 36

None

None

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

17MB

(1) 4M x 36

(1) 256K x 36

None

None

17MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

None

17MB

(1) 256K x 36

(1) 4M x 36

None

None

18MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

None

18MB

(1) 4M x 36

(1) 512K x 36

None

None

18MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

None

18MB

(1) 512K x 36

(1) 4M x 36

None

None

19MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

20MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

None

20MB

(1) 4M x 36

(1) 1M x 36

None

None

20MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

22MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

24MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

24MB

(1) 4M x 36

(1) 2M x 36

None

None

24MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

None

25MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

26MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

28MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

28MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

32MB

(1) 8M x 36

None

None

None

32MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

None

32MB

(1) 4M x 36

(1) 4M x 36

None

None

32MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

33MB

(1) 8M x 36

(1) 256K x 36

None

None

33MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

None

34MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

None

34MB

(1) 8M x 36

(1) 512K x 36

None

None

34MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

None

34MB

(1) 512K x 36

(1) 8M x 36

None

None

35MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

36MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

None

36MB

(1) 8M x 36

(1) 1M x 36

None

None

36MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

None

36MB

(1) 1M x 36

(1) 8M x 36

None

None

38MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

40MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

None

40MB

(1) 8M x 36

(1) 2M x 36

None

None

40MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

40MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

None

40MB

(1) 2M x 36

(1) 8M x 36

None

None

44MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

48MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

None

48MB

(1) 8M x 36

(1) 4M x 36

None

None

48MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

None

49MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

50MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

52MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

56MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

56MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

None

64MB

(1) 8M x 36

(1) 8M x 36

None

None

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

65MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

None

66MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

68MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

None

72MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

None

80MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

80MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

None

96MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

None

97MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

98MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

100MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

104MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

112MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

128MB

(1) 16M x 36

(1) 16M x 36

None

None

128MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

128KB

(4) 32K x 8

None

(1) 8K x 8

256KB (A)

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

256KB (B)

(4) 64K x 8

None

(1) 32K x 8

512KB (A)

(4) 64K x 8

(4) 64K x 8

(1) 32K x 8

512KB (B)

(4) 128K x 8

None

(1) 32K x 8

1MB

(4) 128K x 8

(4) 128K x 8

(1) 64K x 8

CACHE JUMPER CONFIGURATION

Size

JS1

JS2

JS3

JS4

JS5

JS6

128KB

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

256KB (A)

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

256KB (B)

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

512KB (A)

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

512KB (B)

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

1MB

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION

Speed

JCK1

JCK2

JCK3

JCK4

25MHz

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

33MHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

40MHz

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

50iMHz

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

50MHz

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

66iMHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

75iMHz

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

100iMHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

CPU TYPE SELECTION

Type

JC1

JC2

JC3

JC4

JC5

JT2

JT3

UMC SX

1 & 2

2 & 3

1 & 2

Open

Open

Open

Open

80486DX2

1 & 2

1 & 2

1 & 2

Open

Open

Open

Open

AM486DX2

1 & 2

1 & 2

1 & 2

Open

Closed

Open

2 & 3

80486DX2

1 & 2

1 & 2

1 & 2

Open

Open

Open

Open

TI486DX4

1 & 2

1 & 2

1 & 2

Open

Open

Open

Open

AM486DX4

1 & 2

1 & 2

1 & 2

Open

Open

Open

Open

80486DX4

1 & 2

1 & 2

1 & 2

Closed

Open

Open

Open

CX 5X86

1 & 2

1 & 2

1 & 2

Open

Open

Open

2 & 3

AM 5X86

1 & 2

1 & 2

1 & 2

Open

Open

Open

Open

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JPW1

JPW2

3.3v

Pins 7 & 8 closed

Pins 2 & 3 closed

3.45v

Pins 5 & 6 closed

Pins 2 & 3 closed

3.6v

Pins 3 & 4 closed

Pins 2 & 3 closed

4v

Pins 1 & 2 closed

Pins 2 & 3 closed

5v

Open

Pins 1 & 2 closed

BATTERY SELECTION

Setting

JBA1

JBA2

External

Pins 3 & 4 closed

Open

Internal

Pins 2 & 3 closed

Open

CMOS normal operation

Pins 2 & 3 closed

Closed

CMOS memory clear

Pins 3 & 4 closed

N/A

Processor	UMCSX/80486DX/AM486DX2/80486DX2/TI486DX4/AM486DX4/ 8046DX4/CX5X86/AM5X86
Processor Speed	25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz
Chip Set	VIA
Video Chip Set	None
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	None
Cache	128/256/512/1024KB
BIOS	Award
Dimensions	250mm x 220mm
I/O Options	32-bit PCI slots (3), floppy drive interface, game interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse interface	CN1	External battery	JBA1
PS/2 mouse port	CN3	External battery	JBA2
Game interface	CN5	Power LED & keylock	JW1
Parallel port	CN7	Turbo LED	JW2
Floppy drive interface	CN8	Speaker	JW3
Serial port 1	CN9	Turbo switch	JW4
IDE interface 1	CN10	Reset switch	JW5
IDE interface 2	CN11	IDE interface LED	JW6
Serial port 2	CN12	32-bit PCI slots	PC1 - PC3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J104	Unidentified
»	Factory configured - do not alter	J105	Unidentified
»	Factory configured - do not alter	J106	Unidentified
»	Factory configured - do not alter	JIDE	Unidentified
»	Factory configured - do not alter	JG1	Unidentified
»	Factory configured - do not alter	JG2	Unidentified
»	Factory configured - do not alter	JG3	Unidentified
»	Factory configured - do not alter	JG4	Unidentified
»	Factory configured - do not alter	JM5	Unidentified
»	Factory configured - do not alter	JMS2	Unidentified
»	Factory configured - do not alter	JT1	Unidentified
»	Factory configured - do not alter	JT4	Unidentified

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	None	None	None
2MB	(1) 512K x 36	None	None	None
2MB	(1) 256K x 36	(1) 256K x 36	None	None
3MB	(1) 512K x 36	(1) 256K x 36	None	None
3MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	None
3MB	(1) 256K x 36	(1) 512K x 36	None	None
4MB	(1) 1M x 36	None	None	None
4MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	None
4MB	(1) 512K x 36	(1) 512K x 36	None	None
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 1M x 36	(1) 256K x 36	None	None
5MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 256K x 36	(1) 512K x 36	(1) 512K x 36	None
5MB	(1) 256K x 36	(1) 1M x 36	None	None
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
6MB	(1) 1M x 36	(1) 512K x 36	None	None
6MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	None
6MB	(1) 512K x 36	(1) 1M x 36	None	None
7MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
7MB	(1) 256K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
8MB	(1) 2M x 36	None	None	None
8MB	(1) 1M x 36	(1) 512K x 36	(1) 512K x 36	None
8MB	(1) 1M x 36	(1) 1M x 36	None	None
8MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
9MB	(1) 2M x 36	(1) 256K x 36	None	None
9MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	None
9MB	(1) 256K x 36	(1) 2M x 36	None	None
10MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	None
10MB	(1) 2M x 36	(1) 512K x 36	None	None
10MB	(1) 1M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
10MB	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36	None
10MB	(1) 512K x 36	(1) 2M x 36	None	None
11MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
12MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	None
12MB	(1) 2M x 36	(1) 1M x 36	None	None
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	None
12MB	(1) 1M x 36	(1) 2M x 36	None	None
13MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
14MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
14MB	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 4M x 36	None	None	None
16MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	None
16MB	(1) 2M x 36	(1) 2M x 36	None	None
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
17MB	(1) 4M x 36	(1) 256K x 36	None	None
17MB	(1) 256K x 36	(1) 2M x 36	(1) 2M x 36	None
17MB	(1) 256K x 36	(1) 4M x 36	None	None
18MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	None
18MB	(1) 4M x 36	(1) 512K x 36	None	None
18MB	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36	None
18MB	(1) 512K x 36	(1) 4M x 36	None	None
19MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
20MB	(1) 4M x 36	(1) 512K x 36	(1) 512K x 36	None
20MB	(1) 4M x 36	(1) 1M x 36	None	None
20MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
22MB	(1) 4M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
24MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	None

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
128KB	(4) 32K x 8	None	(1) 8K x 8
256KB (A)	(4) 32K x 8	(4) 32K x 8	(1) 32K x 8
256KB (B)	(4) 64K x 8	None	(1) 32K x 8
512KB (A)	(4) 64K x 8	(4) 64K x 8	(1) 32K x 8
512KB (B)	(4) 128K x 8	None	(1) 32K x 8
1MB	(4) 128K x 8	(4) 128K x 8	(1) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JS1	JS2	JS3	JS4	JS5	JS6
128KB	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
256KB (A)	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
256KB (B)	2 & 3	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
512KB (A)	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2
512KB (B)	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	2 & 3
1MB	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION
Speed	JCK1	JCK2	JCK3	JCK4
25MHz	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
33MHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
40MHz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
50iMHz	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
50MHz	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
66iMHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
75iMHz	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
100iMHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

CPU TYPE SELECTION
Type	JC1	JC2	JC3	JC4	JC5	JT2	JT3
UMC SX	1 & 2	2 & 3	1 & 2	Open	Open	Open	Open
80486DX2	1 & 2	1 & 2	1 & 2	Open	Open	Open	Open
AM486DX2	1 & 2	1 & 2	1 & 2	Open	Closed	Open	2 & 3
80486DX2	1 & 2	1 & 2	1 & 2	Open	Open	Open	Open
TI486DX4	1 & 2	1 & 2	1 & 2	Open	Open	Open	Open
AM486DX4	1 & 2	1 & 2	1 & 2	Open	Open	Open	Open
80486DX4	1 & 2	1 & 2	1 & 2	Closed	Open	Open	Open
CX 5X86	1 & 2	1 & 2	1 & 2	Open	Open	Open	2 & 3
AM 5X86	1 & 2	1 & 2	1 & 2	Open	Open	Open	Open
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage	JPW1	JPW2
3.3v	Pins 7 & 8 closed	Pins 2 & 3 closed
3.45v	Pins 5 & 6 closed	Pins 2 & 3 closed
3.6v	Pins 3 & 4 closed	Pins 2 & 3 closed
4v	Pins 1 & 2 closed	Pins 2 & 3 closed
5v	Open	Pins 1 & 2 closed

BATTERY SELECTION
Setting	JBA1	JBA2
External	Pins 3 & 4 closed	Open
Internal	Pins 2 & 3 closed	Open
CMOS normal operation	Pins 2 & 3 closed	Closed
CMOS memory clear	Pins 3 & 4 closed	N/A
