TEKRAM TECHNOLOGY CO., LTD.

P6F40-B5

Processor

Pentium Pro

Processor Speed

150/166/180/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

512MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connector

NPU Options

None

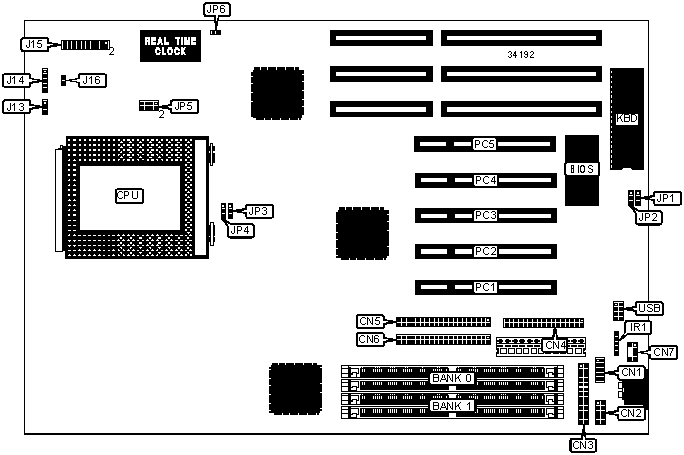

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

IR connector

J14

Serial port 2

CN2

Power LED & keylock

J15 pins 2/4/6/8/10

Parallel port

CN3

Turbo LED

J15 pins 3 & 5

Floppy drive interface

CN4

Green PC connector

J15 pins 7 & 9

IDE interface 2

CN5

Speaker

J15 pins 14/16/18/20

IDE interface 1

CN6

Reset switch

J15 pins 17 & 19

PS/2 mouse interface

CN7

IDE interface LED

J16

IR connector

IR1

32-bit PCI slots

PC1 Ė PC5

Chassis fan power

J13

USB connector

USB

USER CONFIGURABLE SETTINGS

Function

Label

Position



On board I/O enabled

JP1

Pins 1 & 2 closed



On board I/O disabled

JP1

Pins 2 & 3 closed



PS/2 IRQ12 enabled

JP2

Closed



PS/2 IRQ12 disabled

JP2

Open

?

CMOS memory normal operation

JP6

Open



CMOS memory clear

JP6

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

DRAM CONFIGURATION (CONíT)

Size

Bank 0

Bank 1

256MB

(2) 32M x 36

None

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory. Banks are interchangeable.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP3

JP4

JP5

150MHz

60MHz

2.5x

1 & 2

2 & 3

1 & 2, 5 & 6, 7 & 8

166MHz

66MHz

2.5x

2 & 3

1 & 2

1 & 2, 5 & 6, 7 & 8

180MHz

60MHz

3x

1 & 2

2 & 3

1 & 2, 3 & 4, 7 & 8

200MHz

66MHz

3x

2 & 3

1 & 2

1 & 2, 3 & 4, 7 & 8

Note: Pins designated should be in the closed position.
