TECHNOLAND, INC.

PEAK 530

Processor

Pentium

Processor Speed

75/90/100/120/133/150/166/180/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

256MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

338mm x 122mm

I/O Options

Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector, PC/104 connectors (2)

NPU Options

None

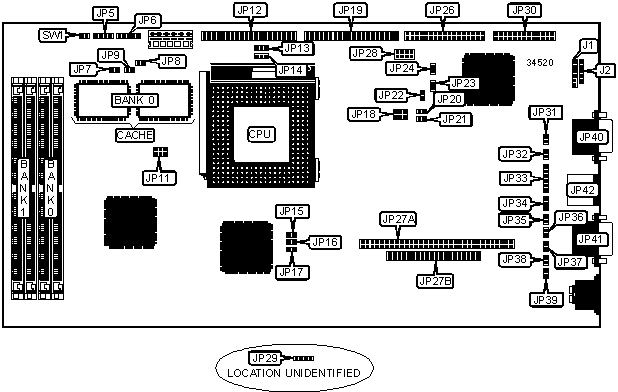

CONNECTIONS

Purpose

Location

Purpose

Location

USB connector

J1

PC/104 connector

JP27A

Auxiliary keyboard connector

J2

PC/104 connector

JP27B

Speaker

JP5

IR connector

JP29

Power LED & keylock

JP6

Parallel port

JP30

+5v power

JP8

Serial port 2

JP40

IDE interface 1

JP12

Serial port 1

JP41

IDE interface 2

JP19

PS/2 mouse port

JP42

IDE interface LED

JP24

Reset switch

SW1

Floppy drive interface

JP26



USER CONFIGURABLE SETTINGS

Function

Label

Position

CMOS memory normal operation

JP31

Open



CMOS memory clear

JP31

Closed

On board I/O enabled

JP32

Open



On board I/O disabled

JP32

Closed

BIOS type select EPROM

JP33

Pins 2 & 3, 4 & 5 closed



BIOS type select flash BIOS

JP33

Pins 1 & 2, 5 & 6 closed

Monitor type select color

JP35

Closed



Monitor type select monochrome

JP35

Open

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

SIMM REFRESH CONFIGURATION

Setting

JP15



50MHz

Closed



60MHz

Closed

66MHz

Open

CACHE CONFIGURATION

Size

Bank 0

256KB

(2) 32K x 32

512KB

(2) 64K x 32

CACHE JUMPER CONFIGURATION

Size

JP7

JP11/pins 3 & 4

JP11/pins 5 & 6

None

N/A

Closed

Closed

256KB

Open

Open

Closed

512KB

Closed

Closed

Open

CACHE SIZE CONFIGURATION

Size

JP11/pins 1 & 2

Extended

Open



Normal

Closed

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP13

JP14

JP16

JP17

JP23

75MHz

50MHz

1.5x

1 & 2

1 & 2

Closed

Closed

Open

90MHz

60MHz

1.5x

1 & 2

1 & 2

Closed

Open

Closed

100MHz

66MHz

1.5x

1 & 2

1 & 2

Open

Closed

Closed

120MHz

60MHz

2x

2 & 3

1 & 2

Closed

Open

Closed

133MHz

66MHz

2x

2 & 3

1 & 2

Open

Closed

Closed

150MHz

60MHz

2.5x

2 & 3

2 & 3

Closed

Open

Closed

166MHz

66MHz

2.5x

2 & 3

2 & 3

Open

Closed

Closed

180MHz

60MHz

3x

1 & 2

2 & 3

Closed

Open

Closed

200MHz

66MHz

3x

1 & 2

2 & 3

Open

Closed

Closed

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP18

JP22

P54C

Pins 1 & 2, 3 & 4, 5 & 6 closed

Pins 1 & 2 closed

P55C

Open

Open

CPU TYPE SELECTION

Type

JP9

Cyrix

Closed

Intel

Open

CPU VOLTAGE SELECTION

Voltage

JP20

JP21



2.8v

Closed

Open

3.3v

Open

Closed

M SYSTEM ADDRESS SELECTION

Setting

JP28



C0000

Pins 1 & 2 closed



C8000

Pins 3 & 4 closed

D0000

Pins 5 & 6 closed



D8000

Pins 7 & 8 closed

WATCHDOG SELECTION

Setting

JP34

Reset

Pins 2 & 3 closed



NMI

Pins 1 & 2 closed



Disabled

Open

WATCHDOG TIMER SELECTION

Delay

JP36

JP37

JP38

JP39



.5 second

Open

Open

Open

Closed



1 second

Open

Open

Closed

Open



2 seconds

Open

Closed

Open

Open

4 seconds

Closed

Open

Open

Open
