SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-433 (VER. 4.0)
|
Device Type |
Mainboard |
|
Processor |
CX486S/CX486DX/CX486DX/486DX4/CX5X86/AM486DX/AM486DX2/AM486DX4/AM5X86/UMCU5S/80486SX/SL80486SX/80486DX/ SL80486DX/80486DX2/SL80486DX2/SL80486DX4/P24D/P24T |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)/80(internal)/100(internal)/ 120(internal)/133(internal)MHz |
|
Chip Set |
UMC |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
128/256/512KB |
|
BIOS |
AMI |
|
Dimensions |
220mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2) |
|
NPU Options |
None |
|

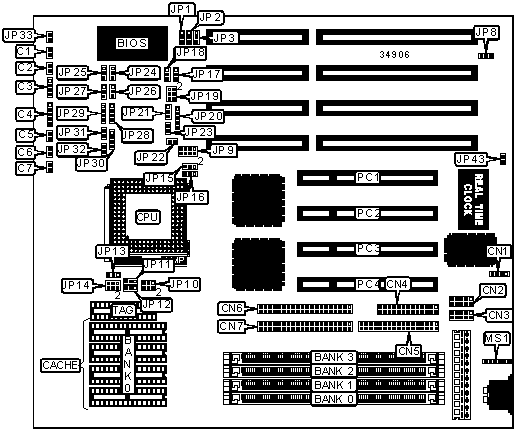

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo switch |
C1 |
Serial port 1 |
CN3 |
|
Turbo LED |
C2 |
Parallel port |
CN4 |
|
Speaker |
C3 |
Floppy drive interface |
CN5 |
|
Power LED & keylock |
C4 |
IDE interface 2 |
CN6 |
|
Green PC connector |
C5 |
IDE interface 1 |
CN7 |
|
IDE interface LED |
C6 |
Reset switch |
JP33 |
|
Green PC LED |
C7 |
PS/2 mouse interface |
MS1 |
|
Serial port 2 |
CN2 |
32-bit PCI slots |
PC1 – PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
CN1 |
Unidentified |
|
Flash BIOS voltage select 12v |
JP8 |
Pins 1 & 2 closed | |
|
Flash BIOS voltage select 5v |
JP8 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP13 |
Unidentified |
|
» |
CMOS memory normal operation |
JP43 |
Open |
|
CMOS memory clear |
JP43 |
Closed | |
|
SIMM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
None |
None |
None |
|
2MB |
(1) 512K x 36 |
None |
None |
None |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
None |
None |
|
3MB |
(1) 512K x 36 |
(1) 256K x 36 |
None |
None |
|
3MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
None |
|
4MB |
(1) 1M x 36 |
None |
None |
None |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
None |
None |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
5MB |
(1) 512K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
6MB |
(1) 1M x 36 |
(1) 512K x 36 |
None |
None |
|
6MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
None |
|
8MB |
(1) 2M x 36 |
None |
None |
None |
|
8MB |
(1) 1M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
None |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
None |
None |
|
SIMM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
9MB |
(1) 2M x 36 |
(1) 256K x 36 |
None |
None |
|
10MB |
(1) 2M x 36 |
(1) 512K x 36 |
None |
None |
|
11MB |
(1) 2M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
12MB |
(1) 2M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
None |
|
12MB |
(1) 2M x 36 |
(1) 1M x 36 |
None |
None |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
None |
|
16MB |
(1) 4M x 36 |
None |
None |
None |
|
16MB |
(1) 2M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
None |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
None |
None |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
17MB |
(1) 4M x 36 |
(1) 256K x 36 |
None |
None |
|
18MB |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
None |
|
18MB |
(1) 4M x 36 |
(1) 512K x 36 |
None |
None |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
None |
None |
|
24MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
None |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
None |
None |
|
24MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
None |
|
28MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
28MB |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 8M x 36 |
None |
None |
None |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
None |
None |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
36MB |
(1) 8M x 36 |
(1) 1M x 36 |
None |
None |
|
40MB |
(1) 8M x 36 |
(1) 2M x 36 |
None |
None |
|
48MB |
(1) 8M x 36 |
(1) 4M x 36 |
None |
None |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
None |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
None |
None |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 16M x 36 |
None |
None |
None |
|
80MB |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
96MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
None |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 16M x 36 |
None |
None |
|
192MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 | |
|
256MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
Note: Board accepts EDO memory. | ||||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
128KB |
(4) 32K x 8 |
(1) 8K/32K x 8 |
|
256KB |
(4) 64K x 8 |
(1) 16K/32K x 8 |
|
512KB |
(4) 128K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
JP11 |
JP12 |
JP14 |
|
128KB |
Open |
Open |
Open |
|
256KB |
Open |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
512KB |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4 closed |
|
CPU SPEED SELECTION | |||
|
Speed |
JP1 |
JP2 |
JP3 |
|
25MHz |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
33MHz |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
40MHz |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
50iMHz |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
50MHz |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
66iMHz |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
80iMHz |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
100iMHz |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
120iMHz |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
133iMHz |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
CPU TYPE SELECTION (CYRIX) | ||||
|
Type |
JP10 |
JP17 |
JP18 |
JP19 |
|
486S |
1 & 3, 4 & 6 |
2 & 3 |
Open |
3 & 4 |
|
486DX |
1 & 3, 4 & 6 |
2 & 3 |
Open |
3 & 4 |
|
486DX2 |
1 & 3, 4 & 6 |
2 & 3 |
Open |
3 & 4 |
|
486DX4 |
1 & 3, 4 & 6 |
2 & 3 |
Open |
3 & 4 |
|
5X86 (2x) |
1 & 3, 2 & 4 |
1 & 2 |
2 & 3 |
3 & 4 |
|
5X86 (3x) |
1 & 3, 2 & 4 |
1 & 2 |
Open |
3 & 4 |
|
5X86 (4x) |
1 & 3, 2 & 4 |
1 & 2 |
2 & 3 |
3 & 4 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (CYRIX, CON’T) | ||||
|
Type |
JP20 |
JP21 |
JP22 |
JP23 |
|
486S |
1 & 2, 3 & 4 |
1 & 2 |
Open |
Open |
|
486DX |
1 & 2, 3 & 4 |
1 & 2 |
Open |
Open |
|
486DX2 |
1 & 2, 3 & 4 |
1 & 2 |
Open |
Open |
|
486DX4 |
1 & 2, 3 & 4 |
1 & 2 |
Open |
Open |
|
5X86 (2x) |
2 & 3, 4 & 5 |
1 & 2 |
Closed |
Closed |
|
5X86 (3x) |
2 & 3, 4 & 5 |
1 & 2 |
Closed |
Closed |
|
5X86 (4x) |
2 & 3, 4 & 5 |
1 & 2 |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (CYRIX, CON’T) | ||||
|
Type |
JP24 |
JP25 |
JP26 |
JP27 |
|
486S |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
486DX |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
486DX2 |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
486DX4 |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
5X86 (2x) |
2 & 3 |
2 & 3 |
Open |
Open |
|
5X86 (3x) |
2 & 3 |
2 & 3 |
Open |
Open |
|
5X86 (4x) |
2 & 3 |
2 & 3 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (CYRIX, CON’T) | |||||
|
Type |
JP28 |
JP29 |
JP30 |
JP31 |
JP32 |
|
486S |
2 & 3 |
1 & 2 |
Open |
Open |
Open |
|
486DX |
1 & 2, 3 & 4 |
2 & 3 |
3 & 4 |
Open |
Open |
|
486DX2 |
1 & 2, 3 & 4 |
2 & 3 |
3 & 4 |
Open |
Open |
|
486DX4 |
1 & 2, 3 & 4 |
2 & 3 |
3 & 4 |
Open |
Open |
|
5X86 (2x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
5X86 (3x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
5X86 (4x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE SELECTION (AMD) | ||||
|
Type |
JP10 |
JP17 |
JP18 |
JP19 |
|
486DX (V8T) |
1 & 3, 2 & 4 |
Open |
Open |
1 & 2 |
|
486DX2 (V8T) |
1 & 3, 2 & 4 |
Open |
Open |
1 & 2 |
|
486DX4 (NV8T) |
1 & 3, 2 & 4 |
Open |
Open |
1 & 2 |
|
486DX4 (NV8T 2x) |
1 & 3, 2 & 4 |
Open |
Open |
1 & 2 |
|
486DX4 (NV8T 3x) |
1 & 3, 2 & 4 |
Open |
Open |
1 & 2 |
|
486DX4 (SV8B 2x) |
1 & 3, 2 & 4 |
1 & 2 |
2 & 3 |
3 & 4 |
|
486DX4 (SV8B 3x) |
1 & 3, 2 & 4 |
1 & 2 |
Open |
3 & 4 |
|
5X86 |
1 & 3, 2 & 4 |
1 & 2 |
2 & 3 |
3 & 4 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (AMD, CON‘T) | ||||
|
Type |
JP20 |
JP21 |
JP22 |
JP23 |
|
486DX (V8T) |
Open |
Open |
Open |
Open |
|
486DX2 (V8T) |
Open |
Open |
Open |
Open |
|
486DX4 (NV8T) |
Open |
Open |
Open |
Open |
|
486DX4 (NV8T 2x) |
Open |
Open |
Open |
Open |
|
486DX4 (NV8T 3x) |
Open |
Open |
Open |
Open |
|
486DX4 (SV8B 2x) |
2 & 3, 4 & 5 |
1 & 2 |
Closed |
Closed |
|
486DX4 (SV8B 3x) |
2 & 3, 4 & 5 |
1 & 2 |
Closed |
Closed |
|
5X86 |
2 & 3, 4 & 5 |
1 & 2 |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (AMD, CON‘T) | ||||
|
Type |
JP24 |
JP25 |
JP26 |
JP27 |
|
486DX (V8T) |
Open |
2 & 3 |
Open |
Open |
|
486DX2 (V8T) |
1 & 2 |
2 & 3 |
Open |
Open |
|
486DX4 (NV8T) |
Open |
2 & 3 |
Open |
Open |
|
486DX4 (NV8T 2x) |
1 & 2 |
2 & 3 |
Open |
Open |
|
486DX4 (NV8T 3x) |
Open |
2 & 3 |
Open |
Open |
|
486DX4 (SV8B 2x) |
2 & 3 |
2 & 3 |
Open |
Open |
|
486DX4 (SV8B 3x) |
2 & 3 |
2 & 3 |
Open |
Open |
|
5X86 |
2 & 3 |
2 & 3 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (AMD, CON‘T) | |||||
|
Type |
JP28 |
JP29 |
JP30 |
JP31 |
JP32 |
|
486DX (V8T) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
486DX2 (V8T) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
486DX4 (NV8T) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
486DX4 (NV8T 2x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
486DX4 (NV8T 3x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
486DX4 (SV8B 2x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
486DX4 (SV8B 3x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
5X86 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE SELECTION (UMC) | ||||
|
Type |
JP10 |
JP17 |
JP18 |
JP19 |
|
486S U5 |
2 & 4, 3 & 5 |
Open |
Open |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (UMC, CON’T) | ||||
|
Type |
JP20 |
JP21 |
JP22 |
JP23 |
|
486S U5 |
Open |
2 & 3 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (UMC, CON’T) | ||||
|
Type |
JP24 |
JP25 |
JP26 |
JP27 |
|
486S U5 |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (UMC, CON’T) | |||||
|
Type |
JP28 |
JP29 |
JP30 |
JP31 |
JP32 |
|
486S U5 |
2 & 3 |
3 & 4 |
1 & 2, 3 & 4 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE SELECTION (INTEL) | ||||
|
Type |
JP10 |
JP17 |
JP18 |
JP19 |
|
80486SX |
1 & 3, 2 & 4 |
Open |
Open |
1 & 2 |
|
SL80486SX |
1 & 3, 2 & 4 |
1 & 2 |
Open |
3 & 4 |
|
80486DX |
1 & 3, 2 & 4 |
1 & 2 |
Open |
2 & 3 |
|
SL80486DX |
1 & 3, 2 & 4 |
1 & 2 |
Open |
2 & 3 |
|
80486DX2 |
1 & 3, 2 & 4 |
1 & 2 |
Open |
2 & 3 |
|
SL80486DX2 |
1 & 3, 2 & 4 |
1 & 2 |
Open |
2 & 3 |
|
SL80486DX4 (2x) |
1 & 3, 2 & 4 |
1 & 2 |
2 & 3 |
2 & 3 |
|
SL80486DX4 (3x) |
1 & 3, 2 & 4 |
1 & 2 |
Open |
2 & 3 |
|
P24D |
1 & 3, 2 & 4 |
1 & 2 |
Open |
3 & 4 |
|
P24T |
1 & 3, 2 & 4 |
1 & 2 |
Open |
3 & 4, 5 & 6 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (INTEL, CON’T) | ||||
|
Type |
JP20 |
JP21 |
JP22 |
JP23 |
|
80486SX |
Open |
Open |
Open |
Open |
|
SL80486SX |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
80486DX |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
SL80486DX |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
80486DX2 |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
SL80486DX2 |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
SL80486DX4 (2x) |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
SL80486DX4 (3x) |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
P24D |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Closed |
|
P24T |
2 & 3, 4 & 5 |
1 & 2 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (INTEL, CON’T) | ||||
|
Type |
JP24 |
JP25 |
JP26 |
JP27 |
|
80486SX |
Open |
2 & 3 |
Open |
Open |
|
SL80486SX |
Open |
2 & 3 |
Open |
Open |
|
80486DX |
Open |
2 & 3 |
Open |
Open |
|
SL80486DX |
Open |
2 & 3 |
Open |
Open |
|
80486DX2 |
Open |
2 & 3 |
Open |
Open |
|
SL80486DX2 |
Open |
2 & 3 |
Open |
Open |
|
SL80486DX4 (2x) |
Open |
2 & 3 |
Open |
Open |
|
SL80486DX4 (3x) |
Open |
2 & 3 |
Open |
Open |
|
P24D |
2 & 3 |
2 & 3 |
Open |
Open |
|
P24T |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE SELECTION (INTEL, CON’T) | |||||
|
Type |
JP28 |
JP29 |
JP30 |
JP31 |
JP32 |
|
80486SX |
2 & 3 |
Open |
3 & 4 |
Open |
Open |
|
SL80486SX |
2 & 3 |
Open |
Open |
Open |
Open |
|
80486DX |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL80486DX |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
80486DX2 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL80486DX2 |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL80486DX4 (2x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
SL80486DX4 (3x) |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Open |
Open |
|
P24D |
1 & 2, 3 & 4 |
Open |
3 & 4 |
Closed |
Closed |
|
P24T |
1 & 2, 3 & 4 |
1 & 2 |
2 & 3 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU VOLTAGE SELECTION | |||
|
Voltage |
JP9 |
JP15 |
JP16 |
|
3.3v |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
3.45v |
Pins 3 & 4 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
3.6v |
Pins 5 & 6 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
4v |
Pins 7 & 8 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
5v |
Open |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
