SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-566

Device Type

Mainboard

Processor

CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/

AM K5/AM K6/Pentium

Processor Speed

75/90/100/120/133/150/166/200/233/266MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

None

Cache

512KB

BIOS

Award

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector

NPU Options

None

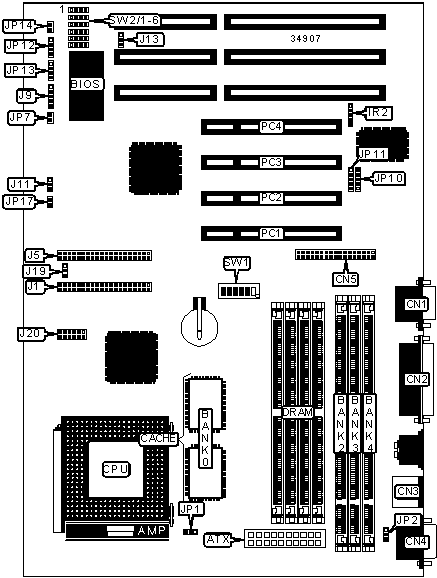

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

CPU fan power

JP1

Serial port 2

CN1

Chassis fan power

JP2

Parallel port

CN2

Soft off power supply

JP7

PS/2 mouse port

CN3

USB connector 1

JP10

Serial port 1

CN4

USB connector 2

JP11

Floppy drive interface

CN5

Speaker

JP12

IR connector

IR2

Green PC/green LED connector

JP13

IDE interface 2

J1

Reset switch

JP14

IDE interface 1

J5

IDE interface LED

JP17

Power LED & keylock

J9

32-bit PCI slots

PC1 – PC4

EISCA cooler connector

J20



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J11

Unidentified



Flash BIOS voltage select 12v

J13

Pins 1 & 2 closed



Flash BIOS voltage select 5v

J13

Pins 2 & 3 closed

»

CMOS memory normal operation

J19

Pins 1 & 2 closed



CMOS memory clear

J19

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

SIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

Bank 3

Bank 4

8MB

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

None

40MB

(1) 2M x 64

(1) 2M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

56MB

(1) 4M x 64

(1) 2M x 64

(1) 1M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

None

72MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

None

80MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

DIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

88MB

(1) 8M x 64

(1) 2M x 64

(1) 1M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

104MB

(1) 8M x 64

(1) 4M x 64

(1) 1M x 64

112MB

(1) 8M x 64

(1) 4M x 64

(1) 2M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

None

136MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

None

144MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

152MB

(1) 16M x 64

(1) 2M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

None

160MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

168MB

(1) 16M x 64

(1) 4M x 64

(1) 1M x 64

176MB

(1) 16M x 64

(1) 4M x 64

(1) 2M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

200MB

(1) 16M x 64

(1) 8M x 64

(1) 1M x 64

208MB

(1) 16M x 64

(1) 8M x 64

(1) 2M x 64

224MB

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Size

Bank 0

512KB

(2) 64K x 32

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

120MHz

50MHz

2x

On

On

On

On

Off

Off

133MHz

55MHz

2x

On

On

Off

On

Off

Off

150MHz

60MHz

2x

On

Off

Off

On

Off

Off

166MHz

66MHz

2x

Off

Off

Off

On

Off

Off

CPU SPEED SELECTION (IBM 6X86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

120MHz

50MHz

2x

On

On

On

On

Off

Off

133MHz

55MHz

2x

On

On

Off

On

Off

Off

150MHz

60MHz

2x

On

Off

Off

On

Off

Off

166MHz

66MHz

2x

Off

Off

Off

On

Off

Off

CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

66MHz

2x

Off

Off

Off

On

Off

Off

CPU SPEED SELECTION (IBM 6X86L)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

66MHz

2x

Off

Off

Off

On

Off

Off

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

60MHz

2.5x

On

Off

Off

On

On

Off

200MHz

66MHz

2.5x

Off

Off

Off

On

On

Off

233MHz

66MHz

3x

Off

Off

Off

Off

On

Off

266MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

60MHz

2.5x

On

Off

Off

On

On

Off

200MHz

66MHz

2.5x

Off

Off

Off

On

On

Off

233MHz

66MHz

3x

Off

Off

Off

Off

On

Off

266MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

75MHz

50MHz

1.5x

On

On

On

Off

Off

Off

90MHz

60MHz

1.5x

On

Off

Off

Off

Off

Off

100MHz

66MHz

1.5x

Off

Off

Off

Off

Off

Off

120MHz

60MHz

1.5x

On

Off

Off

Off

Off

Off

133MHz

66MHz

1.5x

Off

Off

Off

Off

Off

Off

166MHz

66MHz

2.5x

Off

Off

Off

On

On

Off

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

66MHz

2.5x

Off

Off

Off

On

On

Off

200MHz

66MHz

3x

Off

Off

Off

Off

On

Off

233MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

266MHz

66MHz

4x

Off

Off

Off

On

Off

On

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

75MHz

50MHz

1.5x

On

On

On

Off

Off

Off

90MHz

60MHz

1.5x

On

Off

Off

Off

Off

Off

100MHz

66MHz

1.5x

Off

Off

Off

Off

Off

Off

120MHz

60MHz

2x

On

Off

Off

On

Off

Off

133MHz

66MHz

2x

Off

Off

Off

On

Off

Off

150MHz

60MHz

2.5x

On

Off

Off

On

On

Off

166MHz

66MHz

2.5x

Off

Off

Off

On

On

Off

200MHz

66MHz

3x

Off

Off

Off

Off

On

Off

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

66MHz

2.5x

Off

Off

Off

On

On

Off

200MHz

66MHz

3x

Off

Off

Off

Off

On

Off

233MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

CPU VOLTAGE SELECTION (SINGLE)

Voltage

SW2/1

SW2/2

SW2/3

SW2/4

SW2/5

SW2/6

2.0v

3 & 4

3 & 4

3 & 4

3 & 4

3 & 4

3 & 4

2.1v

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

3 & 4

3 & 4

2.2v

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

3 & 4

2.3v

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

3 & 4

2.4v

3 & 4

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

2.5v

1 & 2, 3 & 4

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

2.6v

3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

2.7v

1 & 2, 3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3 & 4

2.8v

3 & 4

3 & 4

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

2.9v

1 & 2, 3 & 4

3 & 4

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3.0v

3 & 4

1 & 2, 3 & 4

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3.1v

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3.2v

3 & 4

3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3.3v

1 & 2, 3 & 4

3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3.4v

3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

3.52v

1 & 2, 3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

3 & 4

3 & 4

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

SW2/1

SW2/2

SW2/3

Auto detect

Auto detect

2 & 3

2 & 3

2 & 3

3.3v

3.3v

1 & 2, 3 & 4

3 & 4

1 & 2, 3 & 4

3.3v

2.1v

1 & 2, 3 & 4

3 & 4

3 & 4

3.3v

3.2v

3 & 4

3 & 4

1 & 2, 3 & 4

3.3v

2.9v

1 & 2, 3 & 4

3 & 4

3 & 4

3.3v

2.8v

3 & 4

3 & 4

3 & 4

3.52v

3.52v

1 & 2, 3 & 4

1 & 2, 3 & 4

1 & 2, 3 & 4

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL, CON’T)

Voltage

V core

SW2/4

SW2/5

SW2/6

Auto detect

Auto detect

2 & 3

2 & 3

2 & 3

3.3v

3.3v

1 & 2, 3 & 4

3 & 4

3 & 4

3.3v

2.1v

3 & 4

3 & 4

3 & 4

3.3v

3.2v

1 & 2, 3 & 4

3 & 4

3 & 4

3.3v

2.9v

1 & 2, 3 & 4

3 & 4

3 & 4

3.3v

2.8v

1 & 2, 3 & 4

3 & 4

3 & 4

3.52v

3.52v

1 & 2, 3 & 4

3 & 4

3 & 4

Note: Pins designated should be in the closed position.
