TEKNOR INDUSTRIAL COMPUTERS, INC.

PCI-934

Device Type

Single board computer

Processor

AM K6/Pentium/Pentium MMX

Processor Speed

100/120/133/150/166/200/233MHz

Chip Set

Intel 430HX

Video Chip Set

Cirrus Logic

Video Types Supported

Unidentified

Highest Resolution Supported

Unidentified

Maximum Onboard Memory

512MB (EDO supported)

Maximum Video Memory

2MB

Cache

512KB

BIOS

Award

Dimensions

338mm x 122mm

I/O Options

Ethernet 10BaseT connector, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connectors (2)

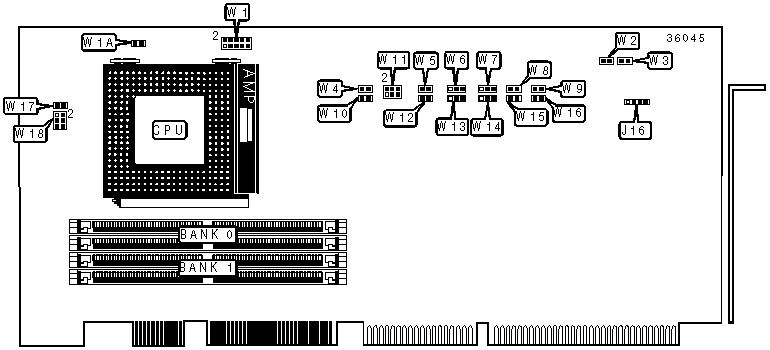

CONNECTIONS

Note: The location of all connectors is unidentified.

USER CONFIGURABLE SETTINGS

Function

Label

Position

Ľ

Factory configured - do not alter

J16

Unidentified



Internal battery disabled

W5

Open



Internal battery enabled

W5

Closed



VGA IRQ disabled

W9

Open



VGA IRQ enabled

W9

Closed

Ľ

Factory configured - do not alter

W11/pins 1 & 2

Unidentified

Ľ

Control edge enabled

W11/pins 3 & 4

Closed



Control edge disabled

W11/pins 3 & 4

Open

Ľ

Data edge enabled

W11/pins 5 & 6

Closed



Data edge disabled

W11/pins 5 & 6

Open

Ľ

Master VGA IRQ disabled

W12

Open



Master VGA IRQ enabled

W12

Closed

Ľ

Flat panel voltage select 5v

W13

Pins 1 & 2 closed



Flat panel voltage select 3.3v

W13

Pins 2 & 3 closed

Ľ

Flat panel clock shift select normal

W14

Pins 1 & 2 closed



Flat panel clock shift select inverted

W14

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

256MB

(2) 32M x 36

None

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

SIMM CONFIGURATION (CONíT)

Size

Bank 0

Bank 1

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: The location of the cache is unidentified.

VIDEO MEMORY CONFIGURATION

Note: The location of the video memory is unidentified.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

W1A

W4

W8

W10

W15

166MHz

66MHz

2.5x

Open

Closed

Closed

Closed

Open

200MHz

66MHz

3x

Open

Closed

Closed

Open

Open

233MHz

66MHz

3.5x

Open

Closed

Open

Open

Open

CPU SPEED SELECTION (AM K6 , CONíT)

CPU speed

Clock speed

Multiplier

W1/pins 1 & 2

W1/pins 3 & 4

W1/pins 5 & 6

W1/pins 7 & 8

W1/pins 9 & 10

166MHz

66MHz

2.5x

Closed

Open

Open

Closed

Open

200MHz

66MHz

3x

Closed

Open

Open

Closed

Open

233MHz

66MHz

3.5x

Open

Open

Closed

Closed

Open

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

W1A

W4

W8

W10

W15

100MHz

66MHz

1.5x

Open

Open

Closed

Open

Open

120MHz

60MHz

2x

Open

Open

Open

Closed

Closed

133MHz

66MHz

2x

Open

Open

Closed

Closed

Open

150MHz

60MHz

2.5x

Open

Closed

Open

Closed

Closed

166MHz

66MHz

2.5x

Open

Closed

Closed

Closed

Open

200MHz

66MHz

3x

Open

Closed

Closed

Open

Open

CPU SPEED SELECTION (INTEL , CONíT)

CPU speed

Clock speed

Multiplier

W1/pins 1 & 2

W1/pins 3 & 4

W1/pins 5 & 6

W1/pins 7 & 8

W1/pins 9 & 10

100MHz

66MHz

1.5x

Closed

Open

Closed

Closed

Open

120MHz

60MHz

2x

Closed

Open

Closed

Closed

Open

133MHz

66MHz

2x

Closed

Open

Closed

Closed

Open

150MHz

60MHz

2.5x

Closed

Open

Closed

Closed

Open

166MHz

66MHz

2.5x

Closed

Open

Closed

Closed

Open

200MHz

66MHz

3x

Closed

Open

Closed

Closed

Open

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

W1A

W4

W8

W10

W15

166MHz

66MHz

2.5x

Open

Closed

Closed

Closed

Open

200MHz

66MHz

3x

Open

Closed

Closed

Open

Open

233MHz

66MHz

3.5x

Open

Closed

Open

Open

Open

CPU SPEED SELECTION (INTEL MMX , CONíT)

CPU speed

Clock speed

Multiplier

W1/pins 1 & 2

W1/pins 3 & 4

W1/pins 5 & 6

W1/pins 7 & 8

W1/pins 9 & 10

166MHz

66MHz

2.5x

Open

Open

Open

Closed

Open

200MHz

66MHz

3x

Open

Open

Open

Closed

Open

233MHz

66MHz

3.5x

Open

Open

Open

Closed

Open

CPU TYPE SELECTION

Type

W17

W18

AMD

Open

Pins 3 & 5, 4 & 6 closed

Intel

Closed

Pins 1 & 3, 2 & 4 closed

Intel MMX

Open

Pins 3 & 5, 4 & 6 closed

SERIAL PORT SELECTION

Setting

W2

W3

Ľ

Termination disabled

Open

Open



Termination enabled

Closed

Closed

WATCHDOG TIMER SELECTION

Setting

W6

Ľ

Single stage watchdog

Pins 2 & 3 closed



Dual stage watchdog

Pins 1 & 2 closed



Disabled

Open

VL BUS SPEED SELECTION

Setting

W7

Ľ

Disabled

Open



From watchdog

Pins 2 & 3 closed



Reserved

Pins 1 & 2 closed
