TOTEM TECHNOLOGY CO., LTD.

TM-586 TX3

Device Type

Mainboard

Processor

CX 6X86/CX 686MX/AM K5/AM 5K86/AM K6/Pentium/Pentium MMX

Processor Speed

75/90/100/120/133/150/166/200/233/266/300MHz

Chip Set

Intel 430TX

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Cache

256/512KB

BIOS

Award

Dimensions

250mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connector, ATX power connector

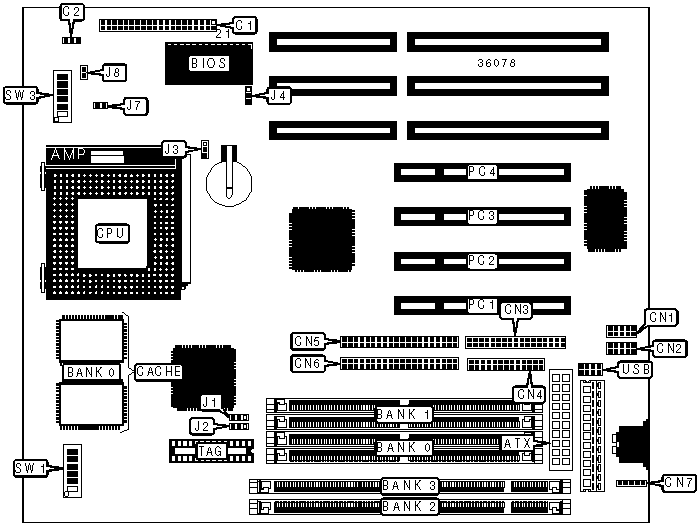

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Chassis fan power

C2

IR connector

C1/pins 1 - 5

Serial port 2

CN1

IR connector

C1/pins 7 - 10

Serial port 1

CN2

Green PC connector

C1/pins 12 & 13

Parallel port

CN3

Green PC LED

C1/pins 15 & 16

Floppy drive interface

CN4

IDE interface LED

C1/pins 18 & 19

IDE interface 2

CN5

Reset switch

C1/pins 21 & 22

IDE interface 1

CN6

Power LED & keylock

C1/pins 24 - 28

PS/2 mouse interface

CN7

Speaker

C1/pins 30 - 34

32-bit PCI slots

PC1 - PC4

Soft off power supply

C1/pins 36 & 37

USB connector

USB

USER CONFIGURABLE SETTINGS

Function

Label

Position

CMOS memory normal operation

J3

Pins 1 & 2 closed



CMOS memory clear

J3

Pins 2 & 3 closed

Factory configured - do not alter

J4

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

Bank 3

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts SDRAM memory.

DIMM VOLTAGE CONFIGURATION

Voltage

J1

J2

3.3v

Pins 2 & 3 closed

Pins 2 & 3 closed

5v

Pins 1 & 2 closed

Pins 1 & 2 closed

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(1) 32K x 64

Unidentified

512KB

(1) 64K x 64

Unidentified

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

120MHz

50MHz

2x

On

Off

Off

*

*

*

133MHz

55MHz

2x

On

Off

Off

On

On

Off

150MHz

60MHz

2x

On

Off

Off

On

Off

Off

166MHz

66MHz

2x

On

Off

Off

Off

Off

Off

200MHz

75MHz

2x

On

Off

Off

Off

On

Off

Note: * = Setting unidentified.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

60MHz

2.5x

On

On

Off

On

Off

Off

200MHz

66MHz

2.5x

On

On

Off

Off

Off

Off

233MHz

66MHz

3x

Off

On

Off

Off

Off

Off

266MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

CPU SPEED SELECTION (AM 5K86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

75MHz

50MHz

1.5x

Off

Off

Off

*

*

*

90MHz

60MHz

1.5x

Off

Off

Off

On

Off

Off

Note: * = Setting unidentified.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

75MHz

50MHz

1.5x

Off

Off

Off

*

*

*

90MHz

60MHz

1.5x

Off

Off

Off

On

Off

Off

100MHz

66MHz

1.5x

Off

Off

Off

Off

Off

Off

120MHz

60MHz

1.5x

Off

Off

Off

On

Off

Off

133MHz

66MHz

1.5x

Off

Off

Off

Off

Off

Off

166MHz

66MHz

1.75x

On

On

Off

Off

Off

Off

Note: * = Setting unidentified.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

66MHz

2.5x

On

On

Off

Off

Off

Off

200MHz

66MHz

3x

Off

On

Off

Off

Off

Off

233MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

266MHz

66MHz

4x

On

Off

On

Off

Off

Off

300MHz

66MHz

4.5x

On

On

On

Off

Off

Off

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

75MHz

50MHz

1.5x

Off

Off

Off

*

*

*

90MHz

60MHz

1.5x

Off

Off

Off

On

Off

Off

100MHz

66MHz

1.5x

Off

Off

Off

Off

Off

Off

120MHz

60MHz

2x

On

Off

Off

On

Off

Off

133MHz

66MHz

2x

On

Off

Off

Off

Off

Off

150MHz

60MHz

2.5x

On

On

Off

On

Off

Off

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

166MHz

66MHz

2.5x

On

On

Off

Off

Off

Off

200MHz

66MHz

3x

Off

On

Off

Off

Off

Off

233MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Off

266MHz

66MHz

4x

On

Off

On

Off

Off

Off

CPU VOLTAGE SELECTION (SINGLE)

Voltage

J7

J8

SW3/1

SW3/2

3.3v

Closed

Open

On

On

3.45v

Closed

Open

On

On

3.52v

Closed

Open

On

On

CPU VOLTAGE SELECTION (SINGLE, CON'T)

Voltage

SW3/3

SW3/4

SW3/5

SW3/6

3.3v

Off

On

Off

On

3.45v

On

Off

Off

On

3.52v

On

On

Off

On

CPU VOLTAGE SELECTION (DUAL)

Voltage

J7

J8

SW3/1

SW3/2

2.2v

Open

Closed

Off

Off

2.8v

Open

Closed

On

Off

2.9v

Open

Closed

On

Off

3.2v

Open

Closed

On

On

3.3v

Open

Closed

On

Off

3.45v

Open

Closed

On

Off

CPU VOLTAGE SELECTION (DUAL, CON'T)

Voltage

SW3/3

SW3/4

SW3/5

SW3/6

2.2v

On

Off

Off

On

2.8v

Off

Off

Off

On

2.9v

Off

On

Off

On

3.2v

Off

Off

Off

On

3.3v

Off

Off

Off

On

3.45v

Off

Off

On

Off
