UNIDENTIFIED

486/33

Processor

80486DX

Processor Speed

33MHz

Chip Set

OPTI

Max. Onboard DRAM

32MB

Cache

None

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

4167

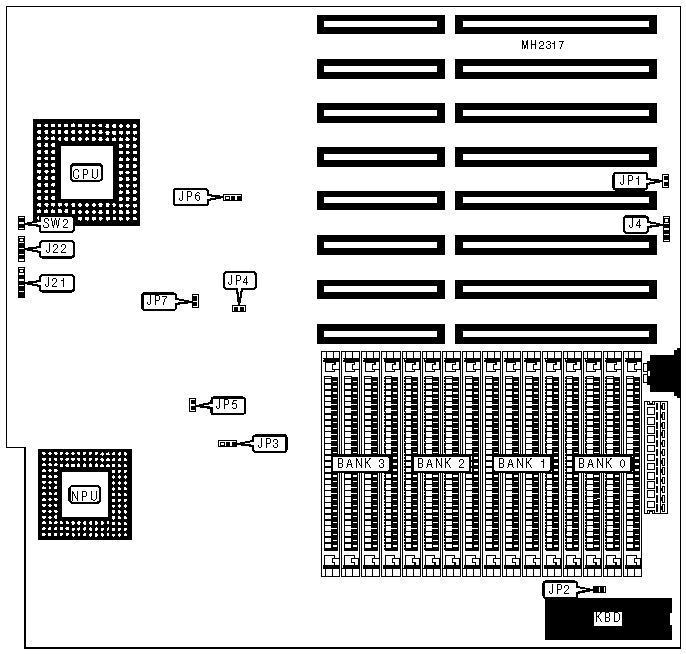

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J4

Speaker

J22

Power LED & keylock

J21

Reset switch

SW2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Battery type select internal

JP1

Closed



Battery type select external

JP1

Open

»

Monitor type select monochrome

JP2

Open



Monitor type select color enabled

JP2

Closed

»

Factory configured - do not alter

JP3

pins 2 & 3 closed

»

Factory configured - do not alter

JP4

pins 1 & 2 closed

»

Factory configured - do not alter

JP5

Open

»

Factory configured - do not alter

JP6

pins 2 & 3 closed

»

Factory configured - do not alter

JP7

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 256K x 9

NONE

NONE

NONE

2MB

(4) 256K x 9

(4) 256K x 9

NONE

NONE

3MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

NONE

4MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

NONE

NONE

6MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

10MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

32MB

(4) 4M x 9

(4) 4M x 9

NONE

NONE
