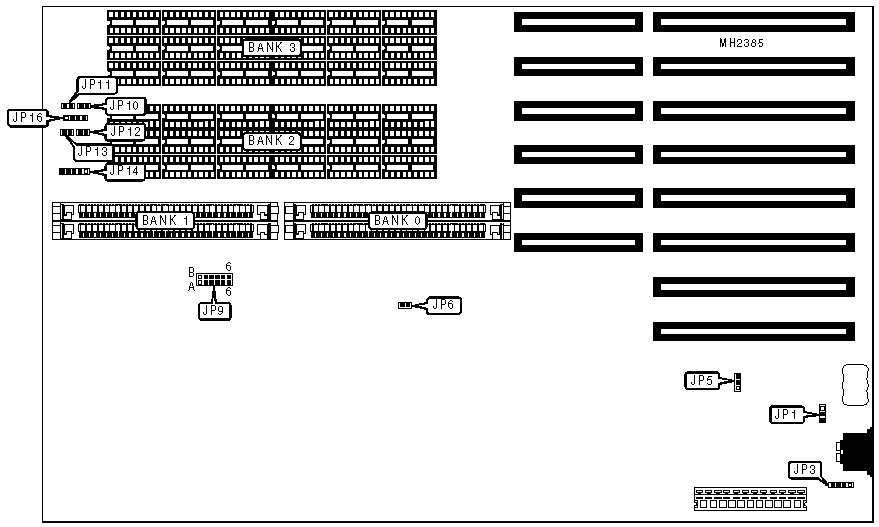

UNIDENTIFIED

NEAT 286 VER. 3

Processor

80286 (exact location unknown)

Processor Speed

12/16/20MHz

Chip Set

VLSI

Max. Onboard DRAM

8MB

Cache

None

BIOS

AMI/Neat

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80287 (exact location unknown)

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JP3

Turbo LED

JP13

Turbo switch

JP10

Power LED & keylock

JP14

Reset switch

JP11

Speaker

JP16

Turbo LED

JP12



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Battery type select internal

JP1

pins 1 & 2 closed



Battery type select external

JP1

pins 2 & 3 closed

»

Monitor type select monochrome

JP5

pins 1 & 2 closed



Monitor type select color

JP5

pins 2 & 3 closed

»

BIOS type select27128

JP6

Open



BIOS type select 27256

JP6

Closed

»

Turbo disabled

JP10

Closed



Turbo enabled

JP10

Open

DRAM CONFIGURATION (SETTING 1)

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(2) 256K x 9

NONE

NONE

NONE

640KB

(2) 256K x 9

(2) 64K x 9

NONE

NONE

1MB

(2) 256K x 9

(2) 256K x 9

NONE

NONE

1.5MB

(2) 256K x 9

(2) 256K x 9

(18) 41256

NONE

1.64MB

(2) 256K x 9

(2) 64K x 9

(18) 41256

(18) 41256

2MB

(2) 1M x 9

NONE

NONE

NONE

2MB

(2) 256K x 9

(2) 256K x 9

(18) 41256

(18) 41256

3MB

(2) 256K x 9

(2) 256K x 9

(18) 44256

NONE

4MB

(2) 1M x 9

(2) 1M x 9

NONE

NONE

4.64MB

(2) 256K x 9

(2) 64K x 9

(18) 44256

(18) 44256

5MB

(2) 256K x 9

(2) 256K x 9

(18) 44256

(18) 44256

6MB

(2) 1M x 9

(2) 1M x 9

(18) 44256

NONE

8MB

(2) 1M x 9

(2) 1M x 9

(18) 44256

(18) 44256

DRAM CONFIGURATION (SETTING 2)

Size

Bank 0

Bank 1

Bank 2

Bank 3

520KB

NONE

NONE

(18) 41256

NONE

640KB

NONE

NONE

(18) 41256

(18) 4164

1MB

NONE

NONE

(18) 41256

(18) 44256

2MB

NONE

NONE

(18) 44256

NONE

4MB

NONE

NONE

(18) 44256

(18) 44256

DRAM JUMPER CONFIGURATION

Setting

JP9A

JP9B

1

Open

pins 1 & 2, 3 & 4, 5 & 6 closed

2

pins 1 & 2, 3 & 4, 5 & 6 closed

Open
