UNIDENTIFIED

ES-8163/386-CS

Processor

80386SX

Processor Speed

20MHz

Chip Set

Unidentified

Max. Onboard DRAM

16MB

Cache

None

BIOS

AMI

Dimensions

220mm x 220mm

I/O Options

None

NPU Options

80387SX

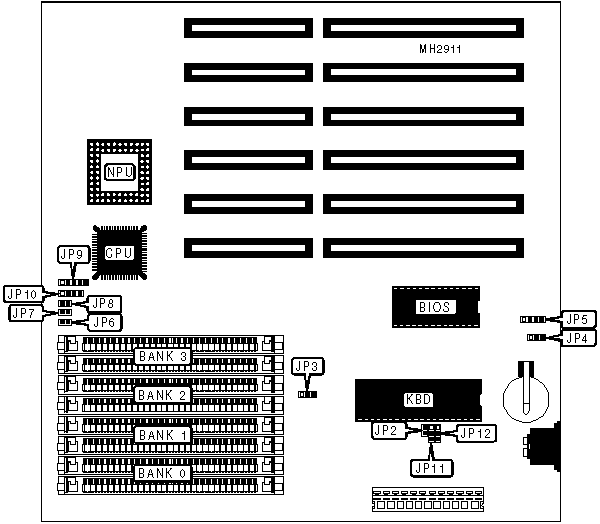

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JP5

Turbo LED

JP8

Reset switch

JP6

Power LED & keylock

JP9

Turbo switch

JP7

Speaker

JP10

USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

Factory configured - do not alter

JP2

N/A

»

CMOS memory normal operation

JP4

pins 1 & 2 closed



CMOS memory clear

JP4

pins 2 & 3 closed

»

Factory configured - do not alter

JP11

N/A

»

Factory configured - do not alter

JP12

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(2) 256K x 9

NONE

NONE

NONE

1MB

(2) 256K x 9

(2) 256K x 9

NONE

NONE

1.5MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

NONE

2MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

2MB

(2) 1M x 9

NONE

NONE

NONE

2.5MB

(2) 256K x 9

(2) 1M x 9

NONE

NONE

3MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

NONE

4MB

(2) 1M x 9

(2) 1M x 9

None

NONE

4.5MB

(2) 256K x 9

(2) 1M x 9

(2) 1M x 9

NONE

5MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

(2) 1M x 9

6MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

None

6.5MB

(2) 256K x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

8MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

8MB

(2) 4M x 9

NONE

NONE

NONE

16MB

(2) 4M x 9

(2) 4M x 9

NONE

NONE

DRAM JUMPER CONFIGURATION

Select

JP3

256KB

pins 1 & 2 closed

1MB

pins 1 & 2 closed

4MB

pins 2 & 3 closed
