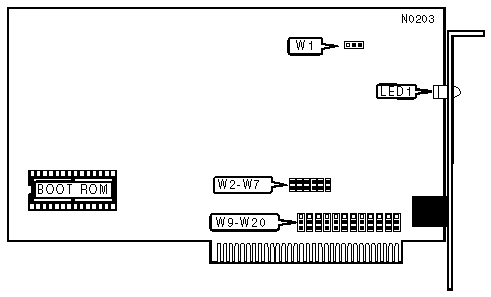

BLACK BOX CORPORATION

NI5210 10BT, LEO28-C

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Available

DIAGNOSTIC LED(S)

LED

Status

Condition

LED1

On

Network connection good

LED1

Off

Network connection is broken

LED1

Blinking

Data is being received

INTERRUPT SETTINGS

IRQ

W2

W3

W4

W5

W6

W7

»

2

Closed

Open

Open

Open

Open

Open



3

Open

Closed

Open

Open

Open

Open



4

Open

Open

Closed

Open

Open

Open



5

Open

Open

Open

Closed

Open

Open



6

Open

Open

Open

Open

Closed

Open



7

Open

Open

Open

Open

Open

Closed

OPTIONAL CHIP SELECTION

Type

W9

W10

»

None

Pins 1 & 2 closed

Pins 1 & 2 closed



8KB RAM chip

Pins 2 & 3 closed

Pins 2 & 3 closed



Boot ROM

Pins 2 & 3 closed

Pins 1 & 2 closed

Note:This card can use either a 8KB RAM chip or a boot ROM in the boot ROM socket, but not both.

BASE MEMORY ADDRESS

Address

W11

W12

W13

W14

»

C0000h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



C4000h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



C8000h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



CC000h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



D0000h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



D4000h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



D8000h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



DC000h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



E0000h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



E4000h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



E8000h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



EC000h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

I/O BASE ADDRESS

Address

W15

W16

W17

W18

W19

W20



200h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3



208h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2



210h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3



218h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2



350h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3



358h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

»

360h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3



368h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2



370h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3



3E0h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3



3E8h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2



3F0h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3



3F8h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Note: Pins designated should be in the closed position.

A full range of I/O addresses are available, in increments of 8h, from 200h to 3F8h for a total of 64 addresses. The 12 examples given are taken from the beginning (first four), the middle (middle four), and the end (last four) of the 64 addresses. To figure out the correct configuration for the I/O address you wish to use, subtract 200h from the address, divide the remainder by 08h, and convert the quotient to a 6-digit binary number. The binary number will represent the setting of each jumper. Each 0 represents pins 2 & 3 closed while each 1 represents pins 1 & 2 closed. W20G is the most significant bit (MSB) and W20L is the least significant bit (LSB). For example, If the desired address is 228h; 228h-200h=28h; 28h/08h=05h; 05h=000101b, and the setting should be:



Address

W20G

W20H

W20I

W20J

W20K

W20L



228h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2
