ADVANCED INTEGRATION RESEARCH, INC.

ENET2V VER. 1.0

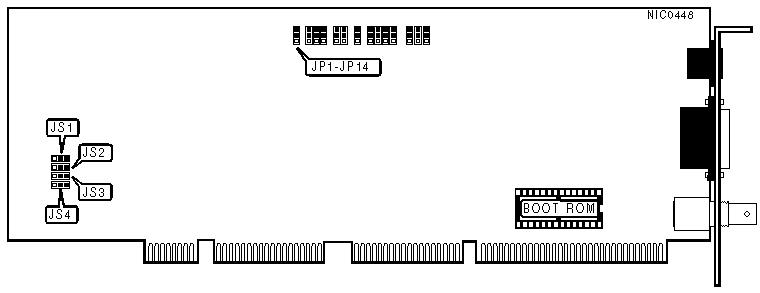

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

32-bit VESA Local bus

Topology

Star

Linear bus

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

AUI transceiver via DB-15 port

Boot ROM

Available

DATA BUS TYPE

Type

JP1

JP12

EISA

Pins 1 & 2 closed

Pins 1 & 2 closed

ISA

Pins 2 & 3 closed

Pins 2 & 3 closed

Note:If the card is installed in a EISA type machine the configuration utility included with the card must

I/O BASE ADDRESS

Address

JP2

JP3

JP4

»

100 - 11Fh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



120 - 13Fh

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



140 - 15Fh

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



160 - 17Fh

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



300 - 31Fh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



320 - 33Fh

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

INTERRUPT REQUEST

IRQ

JP5

JP6



2/9

Pins 2 & 3 closed

Pins 1 & 2 closed

»

5

Pins 1 & 2 closed

Pins 1 & 2 closed



10

Pins 1 & 2 closed

Pins 2 & 3 closed



11

Pins 2 & 3 closed

Pins 2 & 3 closed

BOOT ROM

Setting

JP7

»

Disabled

Pins 1 & 2 closed



Enabled

Pins 2 & 3 closed

BOOT ROM ADDRESS

Address

JP8

JP9

JP10

JP11

»

C0000 - C3FFFh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



C4000 - C7FFFh

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



C8000 - CBFFFh

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



CC000 - CFFFFh

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



D0000 - D3FFFh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



D4000 - D7FFFh

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



D8000 - DBFFFh

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



DC000 - DFFFFh

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

CABLE TYPE

Type

JP13

»

RG-58A/U 50ohm coaxial

Pins 2 & 3 closed



Twisted pair/AUI transceiver via DB-15 port

Pins 1 & 2 closed

CARD ENABLE

Setting

JP14

»

Enabled

Pins 2 & 3 closed



Disabled

Pins 1 & 2 closed

Note:This setting is the equivalent of taking the card out of the computer.

HOST SYSTEM CPU SPEED

Speed

JS1

JS2

JS3

JS4

33MHz or less

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

50MHz

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

FACTORY CONFIGURED SETTINGS

Jumper

Setting

JP12

Pins 2 & 3 closed
