ASANTE TECHNOLOGIES, INC.

MACCON-I NB-10T

Card Type

Ethernet

Chip Set

Unidentified

Data Bus

NuBus

Maximum Network Rate

10Mbps

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

AUI transceiver via DB-15 port

Boot ROM

Not available

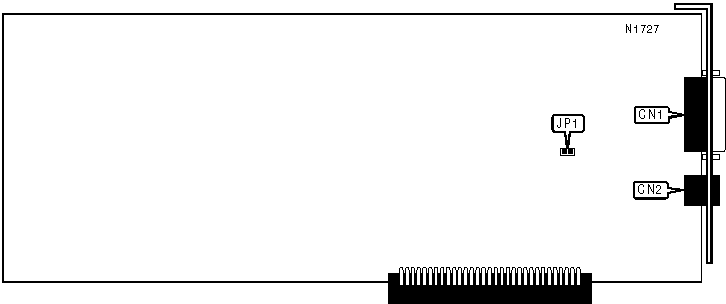

CONNECTIONS

Function

Label

Function

Label

AUI transceiver via DB-15 port

CN1

Unshielded twisted pair

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Link integrity function enabled

JP1

Open



Link integrity function disabled

JP1

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

Blinking

Traffic detected on network

LED1

Yellow

Off

Traffic not detected on network

LED2

Green

On

Network connection is good

LED2

Green

Off

Network connection is broken

Note: Exact location of LEDs is unidentified.
