DIGITAL EQUIPMENT CORPORATION

DEC ETHERWORKS MC_TP/BNC

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

32-bit MCA

Topology

Star

Linear Bus

Wiring Type

Shielded/Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Available

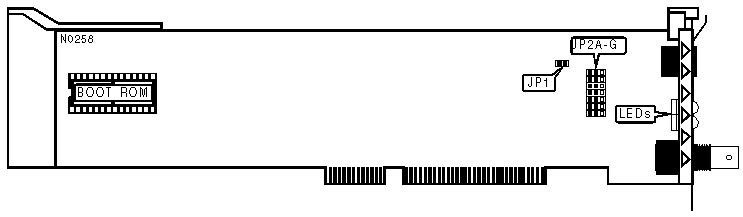

CABLE TYPE

Type

JP1

JP2A - JP2G

»

RG-58A/U 50ohm coaxial

N/A

Pins 2 & 3 Closed



Shielded/Unshielded twisted pair (10Base-T standard)

Open

Pins 1 & 2 Closed



Shielded Twisted Pair (non 10Base-T networks)

Closed

Pins 1 & 2 Closed

DIAGNOSTIC LED(S)

Color

Status

Condition

Amber

On for 20 sec., then off

Card is performing a self-test

Amber

On

Fault has occurred, displays error code on screen.

Green

Blinking

Data is being received

Green

Off

Data is not being received

MISCELLANEOUS NOTES

Software that is supplied with the card must be run in order to fully configure it.
