COMPU-SHACK PRODUCTION, GMBH

FASTLINE-PCI UTP (10/100BASE TX)

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

10/100Mbps (20/200Mbps full duplex)

Topology

Star

Wiring Type

RJ-45 Unshielded twisted pair

Data Bus

32-bit PCI

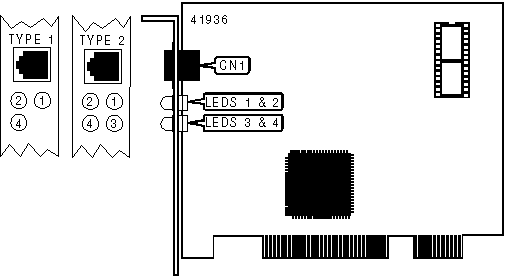

CONNECTIONS

Function

Label

RJ-45 connector

CN1

TYPE 1 DIAGNOSTIC LEDS

LED

Color

Status

Condition

LED1

Green

On

UTP link is good

LED1

Green

Off

UTP link is broken

LED2

Green

On

Adapter card is in 100Mbps mode

LED2

Green

Off

Adapter card is not in 100Mbps mode

LED4

Green

On

Data is being transmitted/received

LED4

Green

Off

Data is not being transmitted/received

TYPE 2 DIAGNOSTIC LEDS

LED

Color

Status

Condition

LED1

Green

On

UTP link is good

LED1

Green

Off

UTP link is broken

LED2

Green

On

Adapter card is in 100Mbps mode

LED2

Green

Off

Adapter card is not in 100Mbps mode

LED3

Green

On

Adapter card is in full duplex mode

LED3

Green

Off

Adapter card is not in full duplex mode

LED4

Green

On

Data is being transmitted/received

LED4

Green

Off

Data is not being transmitted/received
