CODENOLL TECHNOLOGY CORPORATION

CODENET-7564-SC, CODENET-7565-SC

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

4K

Boot ROM

Unidentified

Network Transfer Rate

100Mbps

Topology

Linear Bus, Star

Wiring Type

Fiber optic cable

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

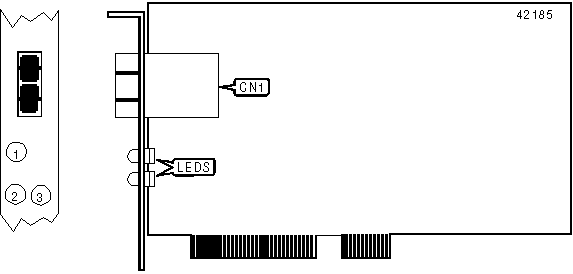

Fiber optic connector (SC)

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Network connection is good

LED1

Unidentified

Off

Network connection is broken

LED2

Unidentified

On

Data is being transmitted

LED2

Unidentified

Off

Data is not being transmitted

LED3

Unidentified

On

Data is being received

LED3

Unidentified

Off

Data is not being received
