COMPAQ COMPUTER CORPORATION

NETELLIGENT 16/4 TR ISA IBM UTP/STP CONTROLLER

Card Type

Network Interface Card

NIC Type

Token Ring

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

4Mbps, 16Mbps

Topology

Ring

Wiring Type

Shielded twisted pair (DB-9), Unshielded twisted pair (RJ-45)

Data Bus

16-bit ISA

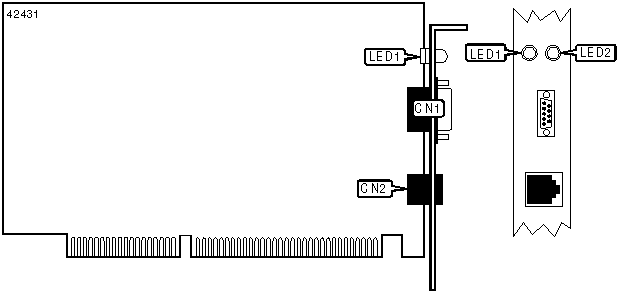

CONNECTIONS

Function

Label

Function

Label

STP connector (DB-9)

CN1

UTP connector (RJ-45)

CN2

DIAGNOSTIC LED(S)

LED1 (Amber)

LED2 (Green)

Condition

Blinking

Blinking

Controller is active and waiting for initialization

Off

Off

Controller initialization in progress, the computer is off, or controller is not active

Off

Blinking

Self-diagnostic test ok and waiting to open

Off

On

Open and operating correctly

On

Off

Self-diagnostic tests failed or problem with controller

Blinking

Off

Controller is closed

Blinking

On

Beaconing or hard error detected

Note: The orienation of the amber and green LEDs may be switched on some versions.
