GATEWAY COMMUNICATIONS, INC.

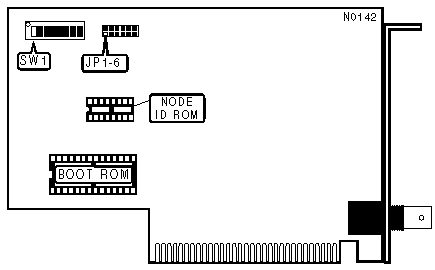

G/EtherNet 8 Adapter (FUJITSU CHIPSET)

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Boot ROM

Available

INTERRUPT REQUEST

IRQ

JP1

JP2

JP3

JP4

JP5

JP6



2

Closed

Open

Open

Open

Open

Open



3

Open

Closed

Open

Open

Open

Open



4

Open

Open

Closed

Open

Open

Open

»

5

Open

Open

Open

Closed

Open

Open



6

Open

Open

Open

Open

Closed

Open



7

Open

Open

Open

Open

Open

Closed

I/O BASE ADDRESS

Address

SW1/1

SW1/2

SW1/3



260-27F

On

On

On



280-29F

Off

On

On

»

2A0-2BF

On

Off

On



2E0-2FF

Off

Off

On



300-31F

On

On

Off



320-33F

Off

On

Off



380-39F

On

Off

Off



3E0-3FF

Off

Off

Off

.

BOOT ROM ADDRESS

PROM Address

SW1/4

SW1/5

SW1/6

C4000-C7FFF

On

On

On

C8000-CBFFF

Off

On

On

CC000-CFFFF

On

Off

On

D0000-D3000

Off

Off

On

D4000-D7000

On

On

Off

D8000-DBFFF

Off

On

Off

DC000-DFFFF

On

Off

Off

Disabledd

Off

Off

Off

WAIT STATE

Setting

SW1/7

»

Zero wait states disabled

Off



Zero wait states enabled

On

MISCELLANEOUS NOTES

Different drivers must be used for the National & the Fujitsu chipset cards, & are not interchangeable. Fujitsu adapters may be used for either 8 or 16 bit Fujitsu cards. While the National chipset cards require a different driver for an 8 or 16 bit card.
