FARALLON COMPUTING, INC.

ETHERWAVE PC

Card Type

Ethernet

Data Bus

16bit-ISA

Maximum network Rate

10Mbps

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

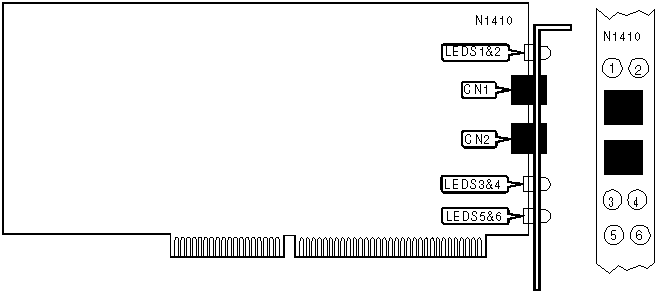

CONNECTIONS

Function

Label

Function

Label

Unshielded twisted pair port (Port 1)

CN1

Unshielded twisted pair port (Port 2)

CN2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good on Port 1

LED1

Green

Off or Blinking

Network connection is broken or bad on Port 1

LED2

Yellow

Blinking

Data is being received on Port 1

LED2

Yellow

Off

Data is not being received on Port 1

LED3

Green

On

Network connection is good on Port 2

LED3

Green

Off or Blinking

Network connection is broken or bad on Port 2

LED4

Yellow

On

Data is being received on Port 2

LED4

Yellow

Off

Data is not being received on Port 2

LED5

Orange

Blinking

Collision or jabber is detected on network

LED5

Orange

Off

Collision or jabber is not detected on network

LED6

Yellow

Blinking

Data is being transmitted

LED6

Yellow

Off

Data is not being transmitted
