HEWLETT PACKARD CORPORATION

HP 27246A

NIC Type

Ethernet

Boot ROM

Not available

Network Transfer Rate

10Mbps

Topology

Star

Wire Type

Unshielded twisted pair

Data Bus

MCA

Card Size

Full height, full length

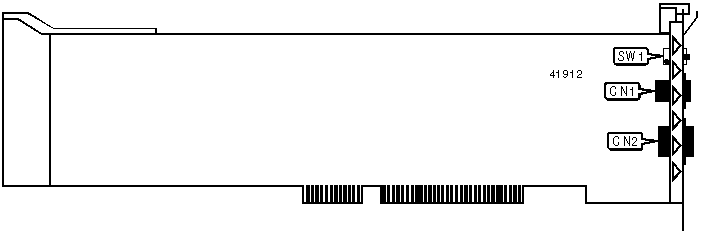

CONNECTIONS

Function

Label

Function

Label

UTP via RJ-11 connector

CN1

UTP via RJ-11 connector

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Heartbeat signal enabled

SW1

On

Heartbeat signal disabled

SW1

Off
