Card Type	Network Interface Card
NIC Type	Token Ring
Maximum Onboard Memory	256Kb RAM
Boot ROM	Not available
Network Transfer Rate	155Mbps
Topology	Ring
Wiring Type	Fiber optic cable SC
Data Bus	16 bit EISA

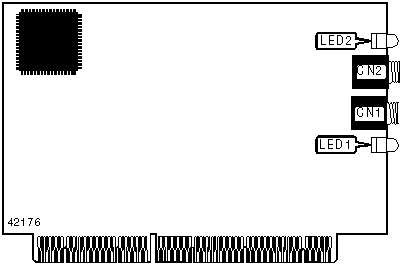

CONNECTIONS
Function	Label	Function	Label
Fiber optic connection - SC transmit	CN1	Fiber optic connection - SC receive	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being transmitted
LED1	Green	Off	Data is not being transmitted
LED1	Yellow	On	Alarm condition declared (trouble with the receiving device)
LED2	Green	On	Data is being received
LED2	Green	Off	Data is not being received
LED2	Red	On	Network connection is broken
