IBM CORPORATION

PC NETWORK ADAPTER (BROADBAND)

NIC Type

Broadband

Transfer Rate

Unidentified

Data Bus

8-bit ISA

Topology

Star

Wiring Type

RG-11A/U

RG-59A/U coaxial

Boot ROM

Not Available

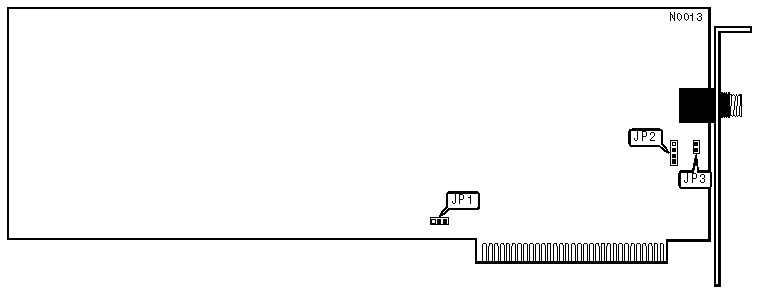

INTERRUPT REQUEST SELECTION

IRQ

JP1

2

Pins 2 & 3 Closed

3

Pins 1 & 2 Closed

I/O ADDRESS SELECTION

Address

JP2

360h

Pins 2 & 3 closed

368h

Pins 1 & 2, 3 & 4 closed

ROM BIOS CONFIGURATION

Setting

JP3

»

Enabled

Closed



Disabled

Open

MISCELLANEOUS TECHNICAL NOTES

The DMA channel is permanently fixed at 3. If two adapters will be installed into one station then disable the ROM BIOS on the second adapter.
