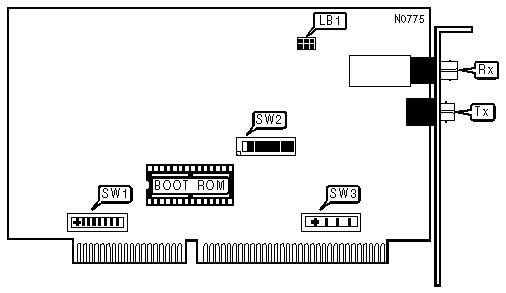

MADGE NETWORKS, LTD.

SMART 16/4 FIBER AT RINGNODE

NIC Type

Token Ring

Transfer Rate

4/16Mbps

Data Bus

16-bit ISA

Topology

Ring

Wiring Type

62.5/125m m multimode graded index optical fiber

Boot ROM

Available

ADDRESS SELECT

I/O Address

Base Memory Address

SW2/1

SW2/2

»

0A20 - 0A2Fh

CC000 - CDFFFh

On

On



1A20 - 1A2Fh

DC000 - DFFFFh

Off

On



2A20 - 2A2Fh

CE000 - CFFFFh

On

Off



3A20 - 3A2Fh

DE000 - DFFFFh

Off

Off

AT BUS TIMING COMPATIBILITY

Setting

SW2/6

»

Normal

On



Alternate

Off

BOOT ROM

Setting

SW2/3

»

Disabled

Off



Enabled

On

BUS MASTER DMA

Setting

SW2/4

»

Enabled

On



Disabled

Off

CLOCK SOURCE

Setting

SW2/7

»

Asynchronous

Off



Synchronous

On

CONCENTRATOR TYPE

Setting

LB1

»

802.5J



Local wrap

Note: Concentrator type is determined by placing a link block over the LB1 jumper block. The block has an arrow printed on the front and should resemble the diagram shown above.

DATA TRANSFER RATE

Speed

SW2/8

»

16Mbps

Off



4Mbps

On

DMA CONFIGURATION

DMA

SW3

»

5

Position 3



1

Position 1



3

Position 2



6

Position 4

Note: Switch 3 is a four-position slide switch. Each position should be silk-screened on the switch itself.

8/16 BIT MODE

Setting

SW2/5

»

8/16-bit mode

On



Force 8-bit mode

Off

INTERRUPT SELECT

IRQ

SW1

»

IRQ3

Position 7



IR/FONT

Position 8



IRQ5

Position 6



IRQ7

Position 5



IRQ10

Position 4



IRQ11

Position 3



IRQ12

Position 2



IRQ15

Position 1

Note: Switch 1 is an eight-position slide switch. Each position should be silk-screened on the switch itself.

CONNECTIONS

Purpose

Location

Fiber-optic transmitter

Tx

Fiber-optic receiver

Rx
