OLICOM, INC.

RAPIDFIRE 3140

Card Type

Network Interface Card

NIC Type

Token Ring

Maximum Onboard Memory

32KB

Boot ROM

Available

Network Transfer Rate

16Mbps/4Mbps

Topology

Ring

Wiring Type

Shielded twisted pair

Unshielded twisted pair

Data Bus

64-bit PCI

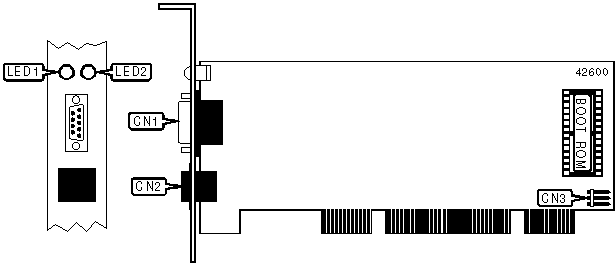

CONNECTIONS

Function

Label

Function

Label

DB-9 STP connector

CN1

Wake-on-LAN connector

CN3

RJ-45 UTP connector

CN2



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is not good

LED2

Yellow

On

Operating at 4Mbps

LED2

Yellow

Off

Operating at 16Mbps
