PURE DATA LTD.

PD1516PLUS-H (HIGH IMPEDANCE)

NIC Type

ARCnet

Transfer Rate

2.5Mbps

Data Bus

16-bit ISA

Topology

Linear Bus

Wiring Type

RG-62A/U 93ohm coaxial

Boot ROM

Available

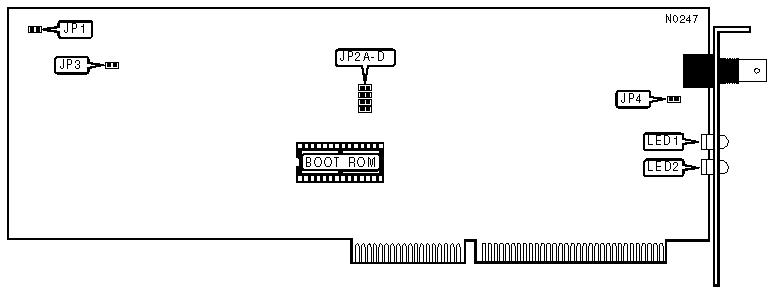

CONFIGURATION MEMORY CLEAR

Clear

JP1

»

Normal operation

Open



Clear all addresses and settings from memory

Closed

Note: When JP1 is closed all card addresses and settings are cleared from memory.

CARDS INSTALLED

Card number

JP2A

JP2B

JP2C

JP2D

1

Closed

Open

Open

Open

2

Open

Closed

Open

Open

3

Open

Open

Closed

Open

4

Open

Open

Open

Closed

Note:If there is only one NIC installed in a system, set this option to the "1" position. If this NIC is the second NIC to be installed in a system, set this option to the "2" position and so on.

COMPATIBILITY MODE

Condition

JP3

»

Compatibility mode disabled

Open



Compatibility mode enabled

Closed

Note: Compatibility mode should be enabled only when the NIC is installed in a system using a Suntac 286 chipset.

TERMINATION JUMPER

Condition

JP4

»

Termination mode disabled

Open



Termination mode enabled

Closed

Note: Termination mode should be enabled when the NIC is installed on the end of a coaxial bus, therefore no external terminator is needed.

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Red

Blinking

I/O bus activity

LED1

Red

Off

No I/O bus activity

LED2

Green

On

Data is being transmitted or received

LED2

Green

Blinking

No network activity detected, or bad connection
