PURE DATA LTD.

PDT8023

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

Toshiba laptop internal expansion slot

Topology

Linear Bus

Wiring Type

RG-62A/U 93ohm coaxial

Boot ROM

Not Available

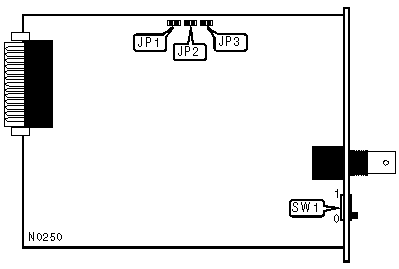

STANDBY MODE

Mode

SW1

Normal

Position 1



Standby (low power)

Position 0

I/O BASE ADDRESS AND INTERRUPT REQUEST

Address

IRQ

JP1

JP2

JP3

280h

2

Closed

Closed

Open

300h

2

Open

Closed

Open

280h

3

Closed

Open

Closed

300h

3

Open

Open

Closed

MISCELLANEOUS NOTES

Software that is supplied with the card must be run in order to fully configure it.
