RNS

2300-TX

NIC Type

Ethernet

Network Transfer Rate

10/100Mbps

Data Bus

32-bit PCI

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

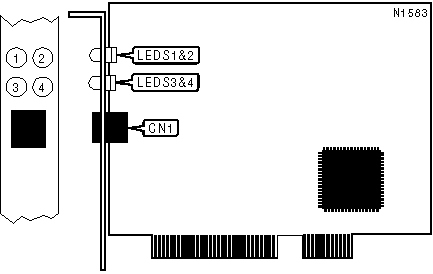

CONNECTIONS

Function

Label

Unshielded twisted pair port

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

Blinking

10Base-T data is being transmitted/received

LED1

Yellow

Off

10Base-T data is not being transmitted/received

LED2

Green

Blinking

100Base-TX data is being transmitted/received

LED2

Green

Off

100Base-TX data is not being transmitted/received

LED3

Yellow

On

10Base-T network connection is good

LED3

Yellow

Off

10Base-T network connection is broken

LED4

Green

On

100Base-TX network connection is good

LED4

Green

Off

100Bsae-TX network connection is broken
