RACORE COMPUTER PRODUCTS, INC.

M8148

NIC Type

Ethernet

Chip Set

Texas Instruments TNETE100

Data Bus

32-bit PCI

Network Transfer Rate

10/100Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Fiber optic cable

Boot ROM

Not available

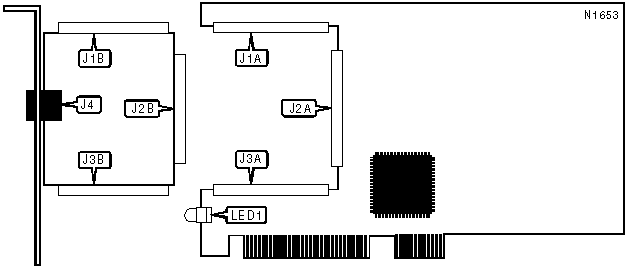

CONNECTIONS

Function

Label

Function

Label

Daughterboard header

J1A

Header to main board

J2B

Daughterboard header

J2A

Header to main board

J3B

Daughterboard header

J3A

Unshielded twisted pair or fiber optic cable (dependent on daughterboard)

J4

Header to main board

J1B



MISCELLANEOUS TECHNICAL NOTE

The function of LED1 is unidentified.
