TIARA COMPUTER SYSTEMS, INC.

LanCard/E * 2000

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

AUI transceiver via DB-15 port

Boot ROM

Available

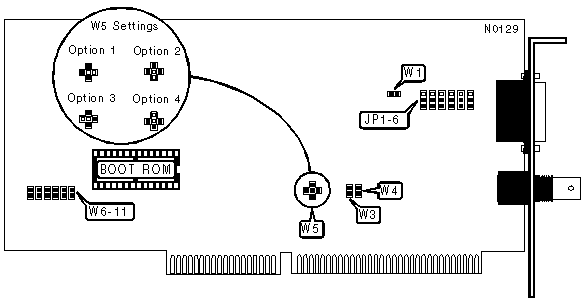

INTERRUPT REQUEST - W5

IRQ

Option #

»

3

Option 3



2

Option 2



4

Option 4



5

Option 1

CABLE TYPE

Type

JP1

JP2

JP3

JP4

JP5

JP6

W1

»

Coaxial

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Closed



AUI

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Open

Note:Pins designated should be in the closed position.

BASE MEMORY ADDRESS

Address

W6

W7

W8

W9

W10

W11

»

CC00h

Closed

Closed

Closed

Open

Closed

Closed



C800h

Closed

Closed

Open

Closed

Closed

Closed



D000h

Closed

Open

Open

Closed

Closed

Closed

I/O BASE ADDRESS

Address

W3

W4

»

300h

Closed

Closed



320h

Open

Closed



340h

Closed

Open



360h

Open

Open
