TECHNOLOGY WORKS
LC ETHERNET
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
LC Processor direct slot (Apple) |
|
Topology: |
Linear Bus Star |
|
Wiring Type |
RG58A/U 50ohm coaxial Shielded/Unshielded twisted pair |
|
Boot ROM |
Not available |
|

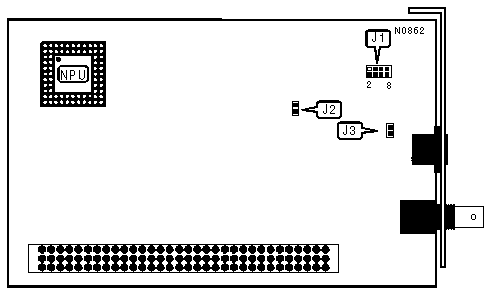

TEST SETTINGS | ||
|
Test |
J1 | |
| » |
Link and Jabber tests enabled |
Pins 1 & 2 closed |
|
All tests disabled |
Pins 3 & 4 closed | |
|
SQE and Jabber tests enabled |
Pins 5 & 6 closed | |
|
SQE, Link, and Jabber tests enabled |
Pins 7 & 8 closed | |
|
CABLE TYPE | |||
|
Type |
J2 |
J3 | |
| » |
RG58A/U 50ohm coaxial |
Closed |
Open |
|
Shielded/Unshielded twisted pair |
Open |
Closed | |
