TRENDWARE INTERNATIONAL, INC.

TOKEN-MC

NIC Type:

Token-Ring

Transfer Rate:

4/16Mbps

Data Bus:

16-bit MCA

Topology:

Ring

Wiring Type

Shielded twisted pair

Unshielded twisted pair

Boot ROM

Available

BOOT ROM

Setting

JP2

Boot ROM disabled

All pins open

Boot ROM enabled

Pins 1 & 2 closed

Boot from TROPIC with Remote Program Load protocol

Pins 2 & 3 closed

Note:Manufacturer’s documentation does not specify the location of JP2.

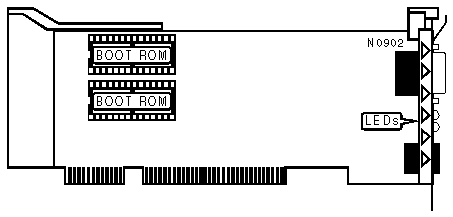

DIAGNOSTIC LEDS

Color

Status

Condition

Amber

On

4Mbps data rate enabled

Green

On

16Mbps data rate enabled
