TOPLINK C&C CORPORATION

32-BIT PCI ETHERNET (TL4500)

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

32-bit PCI

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

AUI transceiver via DB-15 port (optional)

Boot ROM

Available

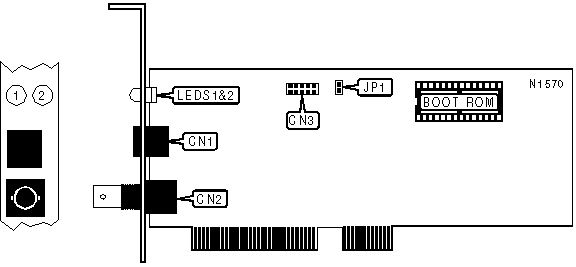

CONNECTIONS

Function

Label

Function

Label

Unshielded twisted pair port

CN1

AUI transceiver via DB-15 port

CN3

RG-58A/U 50ohm coaxial port

CN2



CONNECTIONS

Type

JP1



AUI transceiver via DB-15 port

Open

»

RG-58A/U 50ohm coaxial

Closed



Unshielded twisted pair

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

10Base-T network connection is good

LED1

Green

Off

10Base-T network connection is broken

LED2

Yellow or Red

On

Power is on

LED2

Yellow or Red

Blinking

Data is being transmitted/received

LED2

Yellow or Red

Off

Power is off

Note: The locations of LED1 and LED2 are unidentified.
