CONNOR PERIPHERALS, INC.

C4586NP

Device Type

Internal Removable Media Hard Drive

Interface

SCSI-2 Fast

Media

DAT MP+

Size

5.25 in. third height

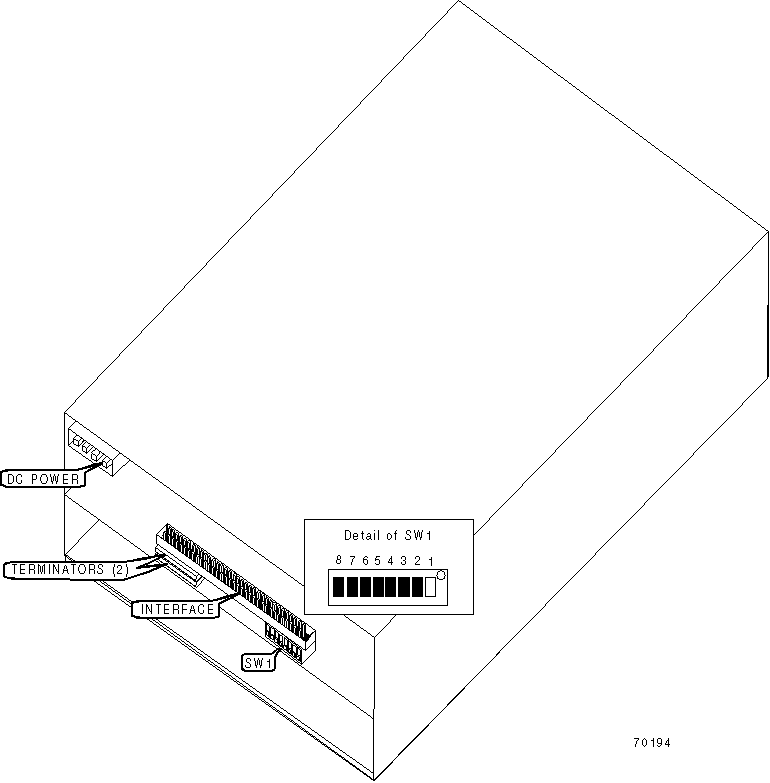

View

Top

DRIVE SELECTION

SCSI ID

SW1/1

SW1/2

SW1/3



0

Off

Off

Off

»

1

Off

Off

On



2

Off

On

Off



3

Off

On

On



4

On

Off

Off



5

On

Off

On



6

On

On

Off



7

On

On

On

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Media Recognition System disabled

SW1/4

On



Media Recognition System enabled

SW1/4

Off



Parity check enabled

SW1/5

On

»

Parity check disabled

SW1/5

Off



DDS Passthrough Mode enabled

SW1/6

On

»

DDS Passthrough Mode disabled

SW1/6

Off



Power-on Self-test enabled

SW1/8

On

»

Power-on Self-test disabled

SW1/8

Off

Note: When SW1/6 is off, then DDS-DC data compression is enabled. When SW1/6 is on, then DDS-DC data compression is disabled.

TERMINATION POWER SELECTION

Setting

Note:TERMPWR supplied by drive

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

60-m DAT

1.3GB

2.6GB

90-m DAT

2GB

4GB

120-m DAT MP+

Unidentified

4GB

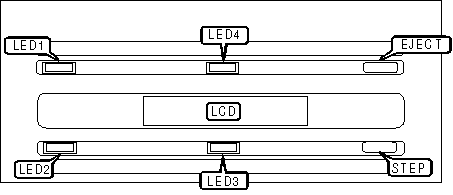

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Cassette is in place

LED1

Green

Off

No cassette is in place

LED2

Green

On

A DDS-DC formatted tape is inserted in drive

LED2

Green

Off

A non-DDS-DC formatted tape is inserted

LED3

Green

On

Write protect on

LED3

Green

Off

Write protect off

LED4

Amber

On

DAT drive is reading/writing

LED4

Amber

Off

DAT drive is not in use
